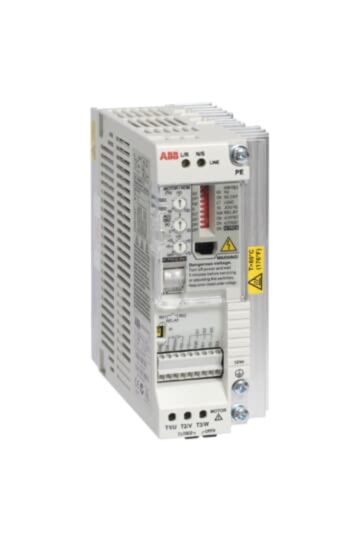

ACS55-01E-09A8-2 ABB 2.2kW Three Phase ABB ACS55 Variable Speed Drive

Why Choose the ABB ACS55-01E-09A8-2 Micro Drive?

The ABB ACS55-01E-09A8-2 is a compact and cost-effective AC variable frequency drive (VFD) designed for simple motor speed control in light industrial, commercial and OEM applications. As part of the reliable ABB ACS55 micro drive series, it provides straightforward control of small three-phase motors from a single-phase supply.

This micro drive is designed for fast installation and easy commissioning, making it a practical choice for machine builders, panel builders and maintenance engineers. Its compact IP20 enclosure, integrated EMC filter and simple control options help reduce panel space, wiring time and setup complexity.

With a rated motor power of 2.2 kW, a nominal output current of 9.8 A and a single-phase 200–240 V AC supply, the ACS55-01E-09A8-2 is ideal for fans, pumps, conveyors, automatic doors, treadmills and other basic motor control applications.

Key Advantages

• Compact micro variable frequency drive for simple motor speed control.
• 2.2 kW motor power rating suitable for light industrial applications.
• Single-phase 200–240 V AC input with three-phase motor output.
• 9.8 A nominal output current for reliable motor performance.
• Integrated EMC filter for improved electrical compatibility.
• Simple programming and setup using keypad or PC configuration.

Key Features

• ABB ACS55 micro drive series.
• 2.2 kW rated motor power.
• 9.8 A current rating.
• Single-phase 200–240 V AC input supply.
• Three-phase 230 V AC motor output.
• Integrated EMC filter.
• Output frequency range up to 250 Hz.
• Programming via keypad or PC.
• Screw terminal electrical connection.
• Compact IP20 enclosure for protected installations.

Technical Specifications

• Manufacturer: ABB
• Series: ACS55 Micro Drives
• Model: ACS55-01E-09A8-2
• Product ID: 68878373
• EAN: 6410038784362
• Product type: AC variable frequency drive
• Rated motor power: 2.2 kW
• Rated output current: 9.8 A
• Input voltage: 200–240 V AC
• Input phases: 1-phase
• Output voltage: 3 × 230 V AC
• Output frequency: 0–250 Hz
• Frequency: 50 / 60 Hz
• Protection rating: IP20
• Electrical connection: Screw terminals
• Programming method: Keypad / PC
• Mounting type: Wall mounting / cabinet mounting
• Operating temperature: -20 to +40 °C

Compact Motor Control for Simple Applications

The ABB ACS55 micro drive regulates motor speed by adjusting output voltage and frequency. This allows equipment to operate at the speed required by the application, helping reduce energy consumption, improve process control and minimise mechanical wear.

Designed for straightforward installation and operation, the ACS55 series is well suited to applications where reliable speed control is needed without unnecessary complexity. Its compact footprint makes it ideal for small panels, machine assemblies and equipment upgrades.

Typical Applications

• Fans and ventilation systems.
• Small pumps and circulation systems.
• Conveyors and light material handling equipment.
• Automatic gates and doors.
• Treadmills and fitness equipment.
• Solar tracking and positioning systems.
• Commercial and light industrial machinery.

Trusted by Machine Builders and Maintenance Engineers

ABB ACS55 micro drives are widely used for compact, reliable and efficient motor speed control in simple commercial, light industrial and OEM applications.
