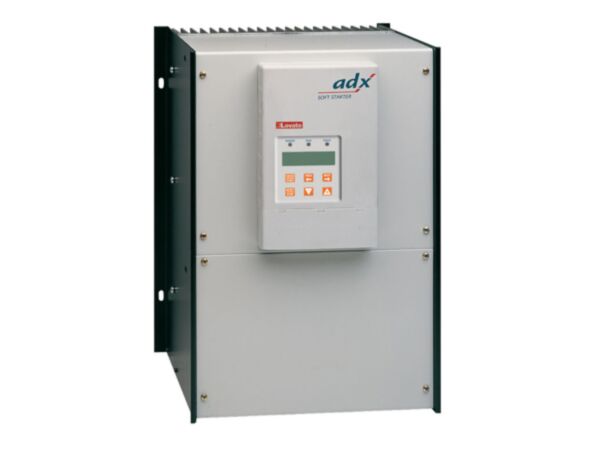

51ADX0142B - SOFT STARTER ADX0142B
MPN: 51ADX0142B
Special Price
£5,719.82
£4,766.52
Regular Price
£6,729.20
Why Choose the 51ADX0142B?
Designed for severe duty starts, the Lovato ADX soft starter 51ADX0142B delivers Advanced, three phase control across demanding industrial applications. Handling 142 A with an integrated by‑pass contactor, it supports motors at 230, 400 and 500 VAC power ratings. With a 208…500 VAC operational range and 208…240 VAC supply, it ensures controlled acceleration while protecting your assets and infrastructure.
Packed with smart functions—motor current thermal protection, current‑limit starting, torque control, kick start and dynamic braking—the ADX platform adds PTC input, event log and RS232 for integration and diagnostics. Conforming to IEC/EN 60947‑1 and 60947‑4‑2, with IP00 construction and pollution degree 3, it carries a −30 to +70 °C storage temperature rating for reliable three‑phase motor control.
Key Benefits
- Severe duty starting capability with current up to 5•Ie.
- Integrated by‑pass contactor for reliable soft start applications.
- Wide 208…500VAC operational voltage range for flexible deployment.
- Advanced three‑phase control with torque control and current‑limit start.
- Motor current thermal protection safeguards connected motors.
- PTC input, event log and RS232 for diagnostics and integration.
- Kick start and dynamic braking support challenging load conditions.
Technical Specification
- Storage temperature: -30 to +70 °C
- Pollution degree: 3
- IP degree of protection: IP00
What’s Included
- Lovato ADX soft starter unit (51ADX0142B)
- Integrated by‑pass contactor (factory‑fitted)
- User documentation and quick start guide
Applications
- Heavy‑duty pumps requiring controlled starts to limit inrush current
- Fans and blowers needing smooth acceleration and braking
- Compressors and chillers with high starting torque demands
- Conveyors and material handling systems in industrial plants
- Mixers, crushers and grinders in severe duty environments
Frequently Asked Questions
What is the rated operational voltage range?
The ADX soft starter operates at 208…500VAC with a 208…240VAC supply.
Does this model include a by‑pass contactor?
Yes, it features an integrated by‑pass contactor as standard.
What motor power can it handle?
It supports 37 kW at 230VAC, 75 kW at 400VAC and 90 kW at 500VAC.
Which protection and control functions are provided?
It offers thermal protection, current‑limit start, torque control, kick start, dynamic braking, PTC input and event log.
Which standards does it conform to and what is the IP rating?
It conforms to IEC/EN 60947‑1 and 60947‑4‑2 and has IP00 protection.
Safety note: Installation and commissioning should be performed by qualified personnel. Observe IP00 requirements, follow the manufacturer’s wiring and protection guidelines, and consult the datasheet before use.
| Manufacturer Part Number | 51ADX0142B |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975075388 |
