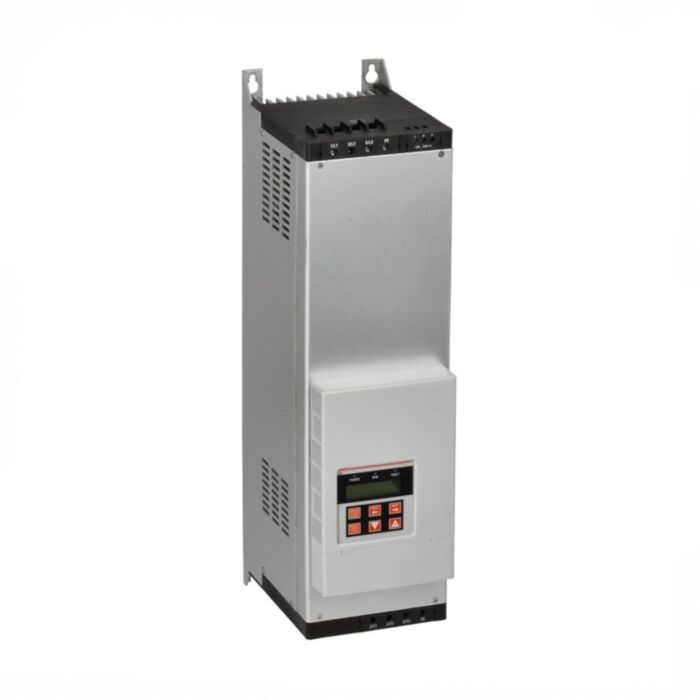

51ADX0110B - SOFT STARTER ADX0110B
MPN: 51ADX0110B
Special Price
£4,325.90
£3,604.92
Regular Price
£5,089.30
Why Choose the 51ADX0110B?
Built for severe duty applications, the Lovato 51ADX0110B soft starter delivers advanced, three‑phase control with an integrated by‑pass contactor and a rated starter current of 110 A. This ADX‑type unit limits starting current (up to 5•Ie) while protecting the motor, making it an ideal choice for demanding start‑ups where smooth acceleration, reliability and compliance are essential.
Rated for 208…500 VAC operation and 208…240 VAC supply, the ADX manages motors to 30 kW at 230 VAC, 55 kW at 400 VAC and 75 kW at 500 VAC. Functions include motor current thermal protection, current‑limit start, torque control, kick start, dynamic braking, PTC input, event log and RS232. Designed to IEC/EN 60947‑1/‑4‑2 with IP20 protection, it suits modern control panels.
Key Benefits
- Severe duty starting capability with current limit up to 5•Ie.
- Integrated by‑pass contactor built in for convenience.
- Advanced three‑phase control with torque control and current limit.
- Rated starter current 110 A for robust motor starts.
- Wide operational range: 208…500 VAC three‑phase systems.
- Motor protection with thermal protection and PTC input.
- Diagnostics and connectivity via event log and RS232.
Technical Specification
- Storage temperature: -30 to +70 °C
- Pollution degree: 3
- IP degree of protection: IP20
What’s Included
- Lovato 51ADX0110B ADX soft starter unit
- Integrated by‑pass contactor pre‑installed
- User manual and quick start guide
- Safety and mounting instructions
Applications
- Heavy‑duty starting of three‑phase industrial motors
- Pumps, fans, compressors and conveyors requiring controlled acceleration
- Installations with 208…500 VAC operational voltage ranges
- Panels needing integrated by‑pass contactor functionality
- Sites requiring event logging and RS232 configuration
Frequently Asked Questions
What is the rated starter current of the 51ADX0110B?
It is rated at 110 A.
What supply voltage does this soft starter require?
It requires a 208…240 VAC supply.
Which motor power ratings are supported?
Up to 30 kW at 230 VAC, 55 kW at 400 VAC and 75 kW at 500 VAC.
Does it include an integrated by‑pass contactor?
Yes, the by‑pass contactor is integrated.
What protective and control functions are available?
It offers motor thermal protection, current limit, torque control, kick start and more.
Safety note: Install and commission only by qualified personnel. Observe IP20 protection limits and Pollution Degree 3 conditions, and follow IEC/EN 60947 standards and the manufacturer’s instructions.
| Manufacturer Part Number | 51ADX0110B |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975068267 |
