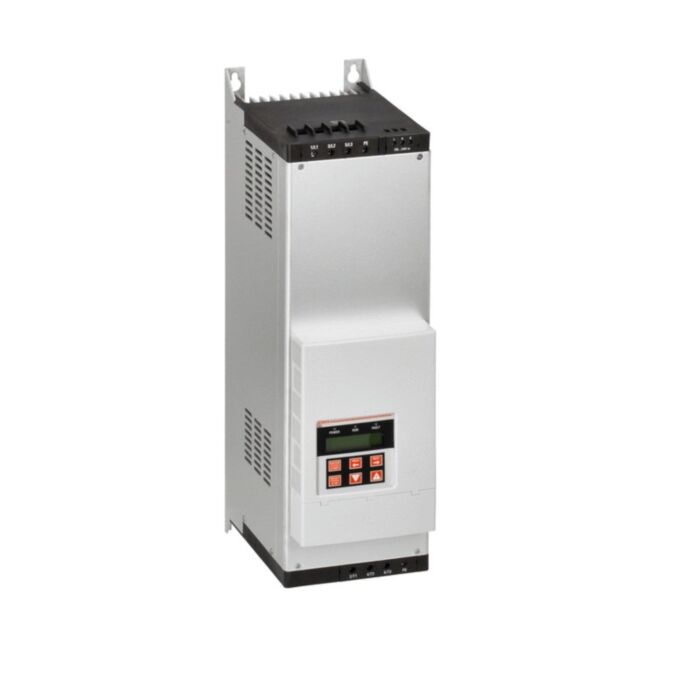

51ADX0075B - SOFT STARTER ADX0075B
MPN: 51ADX0075B
Special Price
£3,433.27
£2,861.06
Regular Price
£4,039.14
Why Choose the 51ADX0075B?
Engineered for severe duty starts, the Lovato ADX soft starter (SKU 51ADX0075B) delivers advanced three phase control with an integrated by-pass contactor and a robust 75 A current rating. Covering 208…500 VAC operational voltage and 208…240 VAC supply, it optimises motor starting on demanding loads while reducing mechanical stress and inrush current.
Comprehensive functions include motor current thermal protection, current-limit starting, torque control, kick start, dynamic braking, PTC input, event log and RS232. Rated motor power spans 18.5 kW at 230 VAC, 37 kW at 400 VAC and 45 kW at 500 VAC. Built to IEC/EN 60947-1 and 60947-4-2 with IP20 protection and Pollution Degree 3, it suits panel installations.
Key Benefits
- Severe duty starting capability with integrated by-pass contactor for reliability.
- Advanced three phase control minimises inrush and mechanical stress.
- 75 A rated starter current supports demanding industrial loads.
- Wide 208…500 VAC operational range for flexible installation.
- Built-in motor protection and current-limit starting enhance safety.
- Torque control, kick start and dynamic braking improve start/stop performance.
- Event log and RS232 interface aid setup and diagnostics.
Technical Specification
- Storage temperature: -30 to +70 °C
- Pollution degree: 3
- IP degree of protection: IP20
What’s Included
- Lovato ADX soft starter unit (51ADX0075B) with integrated by-pass contactor
- Quick installation and safety guide
- Basic mounting and wiring instructions
- Product datasheet reference
Applications
- Pumps and water handling systems
- Fans and HVAC blowers
- Conveyors and material handling
- Compressors and industrial machinery
- Mixers and agitators
Frequently Asked Questions
What supply and operational voltages are supported?
The supply is 208…240VAC and the operational voltage range is 208…500VAC.
Is this model suitable for severe duty starting?
Yes, it is an ADX type for severe duty with a starting current of 5•Ie.
What motor power ratings does it cover?
18.5 kW at 230 VAC, 37 kW at 400 VAC and 45 kW at 500 VAC.
What protection and control functions are included?
It offers motor current thermal protection, current-limit start, torque control, kick start, dynamic braking, PTC input and an event log.
Which standards and protection class does it meet?
It conforms to IEC/EN 60947-1 and 60947-4-2 and is IP20.
Safety note: Install and commission only by qualified personnel. Isolate power before work, follow the manufacturer’s instructions and applicable IEC/EN standards, and ensure adequate ventilation and protection.
| Manufacturer Part Number | 51ADX0075B |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85371098 |
| Barcode | 8013975068243 |
