51ADX0060B - SOFT STARTER ADX0060B

Why Choose the 51ADX0060B?

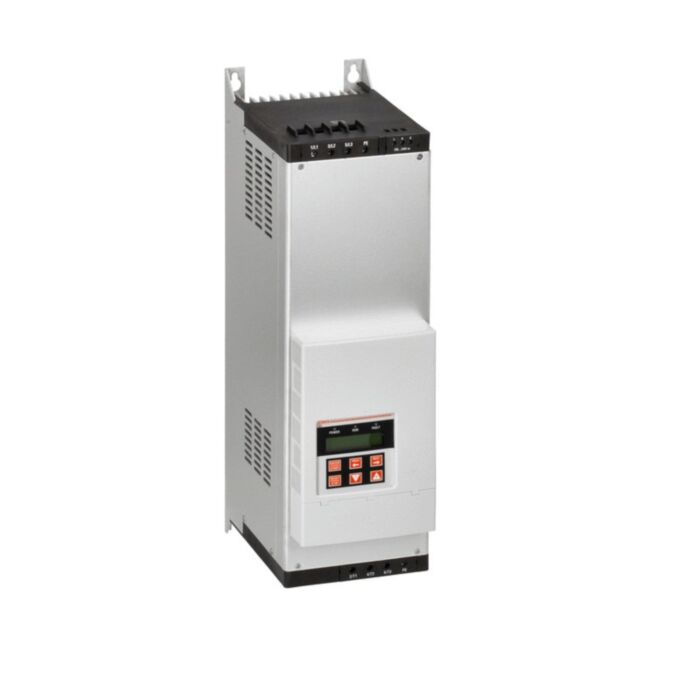

The Lovato 51ADX0060B ADX soft starter delivers advanced, three phase control for severe duty applications, with starting current up to 5•Ie. Rated starter current Ie 60A and an operational voltage range of 208…500VAC, it suits motors up to 15 kW at 230VAC, 30 kW at 400VAC, and 37 kW at 500VAC. An integrated by‑pass contactor reduces heat and losses once the motor reaches speed.

Comprehensive functions include motor current thermal protection, starting with current limit, torque control, kick start and dynamic braking for precise handling. A PTC input, event log and RS232 interface support diagnostics and integration. Built for industrial panels, it offers IP20 protection, pollution degree 3 and storage from -30 to +70 °C, and conforms to IEC/EN 60947‑1 and IEC/EN 60947‑4‑2.

Key Benefits

• Severe duty starting with current limit up to 5•Ie.
• Integrated by‑pass contactor reduces heat and panel energy losses.
• Advanced three phase control for smooth acceleration and torque management.
• Motor current thermal protection and PTC input enhance motor safety.
• Dynamic braking and kick start improve start/stop performance.
• RS232 and event log aid commissioning and diagnostics.
• Wide operational voltage 208…500VAC for flexible deployment.
• IP20 and pollution degree 3 suit protected control enclosures.

Technical Specification

• Storage temperature: -30 to +70 °C
• Pollution degree: 3
• IP degree of protection: IP20

What’s Included

• Lovato 51ADX0060B ADX soft starter unit
• Integrated by‑pass contactor (factory‑fitted)
• User documentation (datasheet/manual access)
• Built‑in RS232 interface for configuration and monitoring

Applications

• Heavy‑duty three‑phase motor starts requiring current limitation
• Pumps, fans and blowers needing smooth acceleration and deceleration
• Conveyors and material handling with torque control requirements
• Compressors and industrial machinery with frequent starts and stops

Safety note: Install and commission only by qualified personnel. Isolate power before work, use within IP20/protected enclosures, and follow the manufacturer’s documentation and applicable standards.
