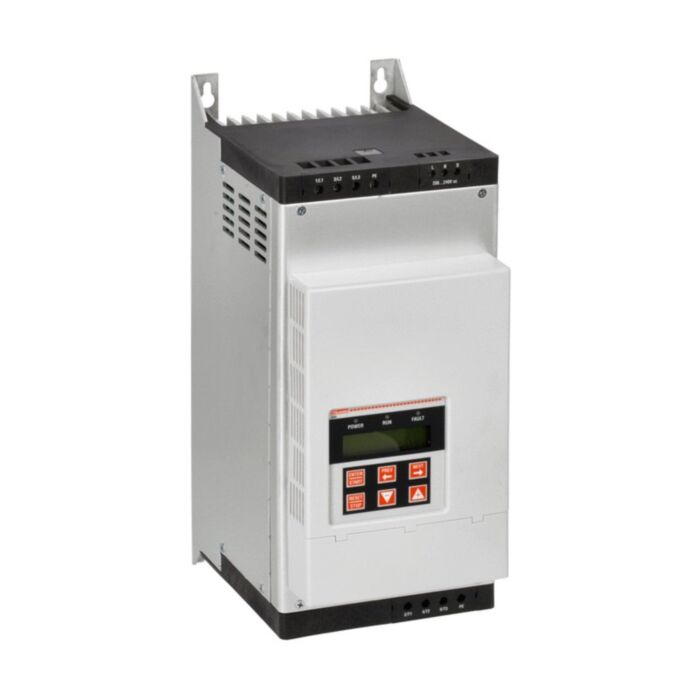

51ADX0030B - SOFT STARTER ADX0030B

Why Choose the Lovato 51ADX0030B Soft Starter?

The Lovato 51ADX0030B is a compact and dependable ADX series soft starter designed for controlled starting and stopping of three-phase asynchronous motors in industrial and commercial applications. As part of the Lovato Electric ADX...B soft starter range, it is engineered for severe-duty motor starting with reduced mechanical stress and improved control compared with direct-on-line starting.

This soft starter features an integrated bypass contactor, helping reduce heat generation and improve operating efficiency once the motor has reached full speed. Its advanced soft-start functionality helps limit inrush current, reduce voltage dips and protect connected machinery from harsh acceleration and stopping conditions.

With a rated starter current of 30 A, a three-phase rated supply voltage of 208-500 V AC and motor ratings up to 15 kW at 400 V AC or 18.5 kW at 500 V AC, the 51ADX0030B is ideal for pumps, fans, compressors, conveyors and general machinery where reliable motor starting is required.

Key Advantages

• Advanced soft starter for three-phase asynchronous motors.
• 30 A rated starter current for industrial motor control applications.
• 15 kW motor rating at 400 V AC and 18.5 kW at 500 V AC.
• 208-500 V AC rated supply voltage for flexible installation.
• Integrated bypass contactor for efficient running operation.
• Designed for severe-duty starting with starting current up to 5 x Ie.

Key Features

• Lovato Electric ADX...B soft starter series.
• 30 A rated starter current.
• Three-phase 208-500 V AC supply voltage.
• 208-240 V AC auxiliary supply voltage.
• 50/60 Hz rated frequency.
• Integrated bypass contactor for reduced heat dissipation.
• Suitable for severe-duty motor starting applications.
• IP20 protection rating for panel or enclosure installation.

Technical Specifications

• Manufacturer: Lovato Electric
• Series: ADX...B Soft Starters
• Model: 51ADX0030B
• Product type: Soft starter
• Motor type: Three-phase asynchronous motor
• Rated starter current: 30 A
• Rated supply voltage: 208-500 V AC
• Auxiliary supply voltage: 208-240 V AC
• Rated frequency: 50 / 60 Hz
• IEC motor power at 230 V: 7.5 kW
• IEC motor power at 400 V: 15 kW
• IEC motor power at 500 V: 18.5 kW
• UL motor rating at 220-240 V: 10 HP
• UL motor rating at 380-415 V: 20 HP
• Duty type: Severe duty, starting current 5 x Ie
• Bypass contactor: Integrated
• Torque control: Yes
• Motor overload protection: Integrated
• Display: Integrated display
• Protection rating: IP20
• Mounting type: Screw mounting / panel mounting
• Dimensions (H x W x D): approx. 372 x 223 x 157 mm
• Maximum operating temperature: 55 °C without derating
• Package dimensions: approx. 385 x 165 x 240 mm
• GTIN / EAN: 8013975063804
• HS Code: 85371098
• Standards: IEC/EN 60947-1, IEC/EN 60947-4-2

Reliable Soft Starting for Industrial Motors

Soft starters such as the Lovato 51ADX0030B gradually increase motor voltage during start-up to limit inrush current and reduce mechanical shock. This helps protect motors, couplings, belts, pumps and driven machinery from the stress associated with full-voltage starting.

The integrated bypass contactor improves efficiency during normal operation by bypassing the power electronics once the motor is running at speed. This makes the ADX...B series suitable for industrial applications where dependable starting control, motor protection and long service life are important.

Typical Applications

• Pumps and water treatment systems.
• Fans, blowers and ventilation equipment.
• Compressors and process machinery.
• Industrial conveyors and material handling systems.
• Packaging and production machinery.
• General three-phase motor starting applications.

Trusted by Industrial Motor Control Engineers

Lovato Electric soft starters are widely used by panel builders, maintenance engineers and industrial automation specialists for reliable motor starting, reduced mechanical stress and efficient control of three-phase motor applications.
