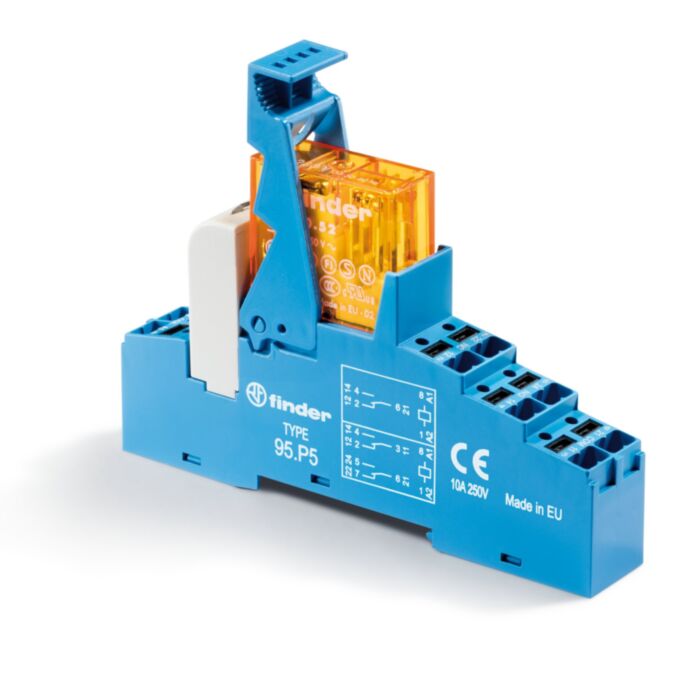

48.P5.8.012.0060SPA Finder 2 CO Contacts 12V AC Modular Interface Relay with Green LED + varistor Indication

Why Choose the Finder 48.P5.8.012.0060SPA Modular Interface Relay?

The Finder 48.P5.8.012.0060SPA is a compact DIN rail modular interface relay designed to provide dependable electrical isolation between control electronics and field devices in industrial automation systems. It features two changeover contacts (DPDT / 2 CO) together with a 12 V AC control coil, allowing reliable switching of control signals and moderate loads in automation cabinets, machine control systems and industrial control panels.

This interface relay includes an integrated green LED status indicator together with coil suppression using a built-in varistor. The LED provides clear visual feedback when the relay is energised, while the varistor helps protect control circuits and PLC outputs from switching transients generated during relay operation.

Part of the Finder Series 48 interface relay range, the device is designed for installation on a standard 35 mm DIN rail. With durable AgNi (silver-nickel) contacts and a compact industrial footprint, it delivers dependable switching performance in control cabinets where reliable signal isolation and efficient panel layout are essential.

Key Features

• 2 changeover contacts (DPDT / 2 CO) for switching two independent circuits.
• 12 V AC coil voltage suitable for industrial control systems.
• Integrated green LED indicator showing relay energised status.
• Built-in varistor suppression protecting control circuits from switching spikes.
• Rated contact current up to 16 A for industrial switching applications.
• DIN rail mounting (EN 60715) for quick installation.
• Compact interface module design suitable for high-density control cabinets.
• AgNi contact material ensuring reliable switching and long electrical life.

Technical Specifications

• Manufacturer: Finder
• Series: 48 Series interface relays
• Model: 48.P5.8.012.0060SPA
• Product type: Modular interface relay
• Contact configuration: 2 CO (DPDT)
• Rated contact current: 16 A
• Rated switching voltage: 250 V AC
• Maximum switching voltage: 400 V AC
• Maximum switching load: approx. 4000 VA
• Coil voltage: 12 V AC
• Indicator: Green LED
• Coil suppression: Varistor
• Contact material: Silver Nickel (AgNi)
• Operate / release time: approx. 8 ms / 6 ms
• Mounting: DIN rail (EN 60715)
• Terminal type: Screw terminals
• Operating temperature: −40 °C to +70 °C
• Protection rating: IP20

Typical Applications

• PLC output interface modules.
• Industrial automation control cabinets.
• Machine control and signal isolation.
• Building automation and HVAC control systems.
• Industrial process control equipment.

Trusted by Automation Engineers

Finder interface relays are widely trusted by automation engineers and panel builders for dependable signal isolation and switching in industrial control cabinets and automation systems.
