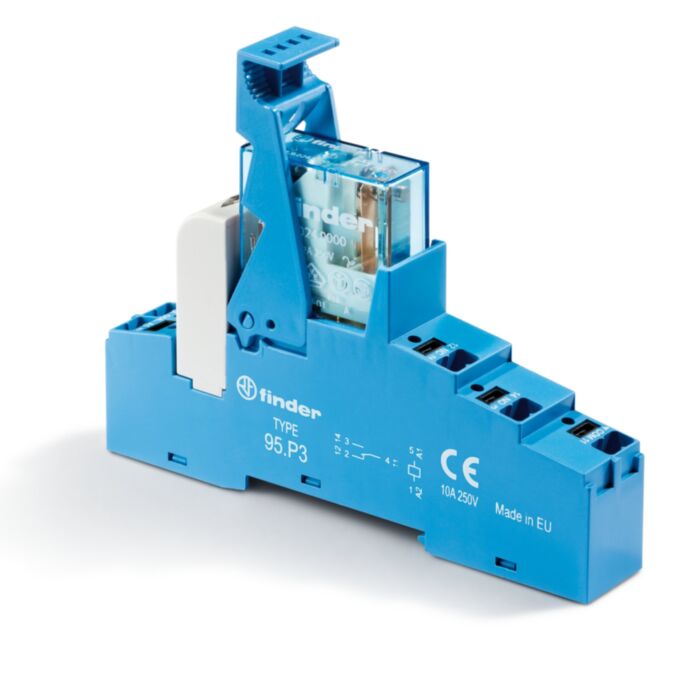

48.P3.8.230.0060SPA Finder 1 CO Contacts 230V AC Modular Interface Relay with Green LED + diode Indication
MPN: 48.P3.8.230.0060SPA
Alt. SKU: 48P382300060SPA
Special Price
£19.43
£16.19
Regular Price
£29.88
Why Choose the Finder 48.P3.8.230.0060SPA Modular Interface Relay?
The Finder 48.P3.8.230.0060SPA is a compact DIN rail modular interface relay engineered to provide dependable electrical isolation between control electronics and field devices in industrial automation systems. It features a single changeover contact (SPDT / 1 CO) and a 230 V AC control coil, making it suitable for switching signals and loads within automation cabinets, machine control systems and industrial electrical panels.
This version includes an integrated green LED status indicator together with coil suppression using an integrated diode. The LED provides clear visual feedback when the relay coil is energised, while the diode helps protect control electronics and PLC outputs from switching transients generated during relay operation.
Part of the Finder Series 48 interface relay range, the module is designed for installation on a standard 35 mm DIN rail. With durable AgNi (silver-nickel) contacts and a compact industrial footprint, it delivers dependable switching performance in control cabinets where reliable signal isolation and long-term switching reliability are essential.
Key Features
- 1 changeover contact (SPDT / 1 CO) for flexible control switching.
- 230 V AC coil voltage suitable for industrial control systems.
- Integrated green LED indicator showing relay energised status.
- Integrated diode suppression protecting PLC outputs and control circuits.
- Rated contact current up to 16 A for industrial switching applications.
- DIN rail mounting (EN 60715) for fast installation.
- Compact interface module design suitable for high-density control cabinets.
- AgNi contact material ensuring reliable switching and long electrical life.
Technical Specifications
- Manufacturer: Finder
- Series: 48 Series interface relays
- Model: 48.P3.8.230.0060SPA
- Product type: Modular interface relay
- Contact configuration: 1 CO (SPDT)
- Rated contact current: 16 A
- Rated switching voltage: 250 V AC
- Maximum switching voltage: 400 V AC
- Maximum switching load: approx. 4000 VA
- Coil voltage: 230 V AC
- Indicator: Green LED
- Coil protection: Integrated diode
- Contact material: Silver Nickel (AgNi)
- Operate / release time: approx. 8 ms / 6 ms
- Mounting: DIN rail (EN 60715)
- Terminal type: Screw terminals
- Operating temperature: −40 °C to +70 °C
- Protection rating: IP20
Typical Applications
- PLC output interface modules.
- Industrial automation control cabinets.
- Machine control and signal isolation.
- Building automation and HVAC control systems.
- Industrial process control equipment.
Frequently Asked Questions
What is the Finder 48.P3.8.230.0060SPA used for?
This interface relay isolates control circuits from field devices while enabling reliable switching of signals in industrial automation systems.
What contact configuration does the relay provide?
The relay includes one changeover contact (SPDT / 1 CO), allowing switching between normally open and normally closed circuits.
What coil voltage does this relay require?
This version operates with a 230 V AC control coil.
Does the relay include an LED indicator?
Yes. The relay includes a green LED indicator that shows when the coil is energised.
What protection does the coil include?
The relay incorporates an integrated diode suppression circuit that helps reduce switching transients and protect connected control electronics.
Trusted by Automation Engineers
Finder interface relays are widely trusted by automation engineers and panel builders for dependable signal isolation and switching in industrial control cabinets and automation systems.
| Manufacturer Part Number | 48.P3.8.230.0060SPA |
|---|---|
| Range | 48 |
| Height | 95.5mm |
| Width | 15.8mm |
| Depth | 71.7mm |
| Manufacturer | Finder |
| Packed Quantity | 10 |
| HS Code | 85364900 |
| Barcode | 8012823402154 |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Push-in clamp connection |
| With LED indication | Yes |
| Voltage type for actuating | AC |
| Rated control supply voltage AC 60 Hz | 230; 230 |
| Rated control supply voltage AC 50 Hz | 230; 230 |
| With detachable clamps | Yes |
| Material of contact insert | Thermoplastic |
| Contact material | AgNi |
| Material of contact surface | Untreated |
| Type of switch contact | Single contact |
| Drive, switching attitude | Mono stable |
| Drive, polarization | Polarity free |
| Nominal current | 10A |
| Number of contacts as change-over contact | 1 |
| Indication Type | Green LED + diode |
| Alternative Product SKU | 48P382300060SPA |
