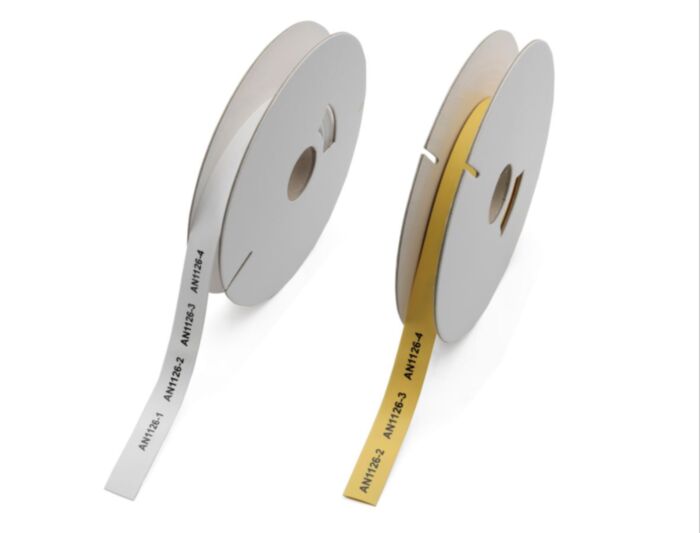

4298185 Cembre TERMO-ROLL H3-120-WH3
MPN: 4298185
Alt. SKU: H3-120-WH3
Special Price
£274.37
£228.64
Regular Price
£342.96
Why Choose the TERMO-ROLL H3-120-WH3 Heat Shrink Tubing?
The TERMO-ROLL H3-120-WH3 (SKU: 4298185) is a high-performance, 3:1 shrink ratio heat shrink tubing designed for demanding electrical applications. Engineered for reliability and longevity, this white, irradiated polyolefin tubing offers superior protection and insulation for cables and wires in a wide range of industrial environments. Its compliance with relevant standards ensures safety and optimal performance.
Key Features
- High Temperature Resistance: Operates effectively in temperatures from -55°C to +135°C.
- 3:1 Shrink Ratio: Provides a tight, secure fit over a variety of cable diameters (5-11mm) and cross-sections (6-35mm²).
- Halogen-Free and Silicone-Free: Ensures safety and minimizes environmental impact.
- Durable Irradiated Polyolefin Material: Offers excellent mechanical strength and resistance to abrasion, chemicals, and UV radiation.
- Compatible with ROLLY2000 & ROLLY3000 Printers: Enables clear and permanent marking for easy identification.
Technical Specifications
- Part Number: H3-120-WH3
- SKU: 4298185
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: 135°C
- Silicone-Free: No
- Halogen-Free: No
- Minimum Shrinkage Temperature: 90°C
- Storage Temperature: 10°C to 25°C
- Storage Duration: 720 days
- Relative Humidity of Storage: 45% to 55%
- Customs Code: 39173200
- ETIM Class 7: Cable coding system [EC001530]
- Compatible Ribbons: TRR-055; TRPR-060 PREMIUM
- Cable Housing Diameter Range: 5mm to 11mm
- Cable Cross Section Range: 6mm² to 35mm²
- Color: White
- Material: Irradiated Polyolefin
- Length (L): 15mm
- Shrinkage Ratio: 3:1
- Gross Weight: 352g
- Software Code: 7150
- Printable with: ROLLY2000; ROLLY3000
Applications
- Protecting and insulating electrical connections in industrial control panels.
- Cable bundling and organization in demanding environments.
- Repairing damaged cable insulation.
- Providing strain relief for wire terminations.
Frequently Asked Questions
This product meets strict industry compliance standards and is made from robust, irradiated polyolefin for superior performance in challenging environments.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 4298185 |
| Colour | White |
| Country of Manufacture | Denmark |
| HS Code | 39173200 |
| Alternative Product SKU | H3-120-WH3 |
| Barcode | 8016692614687 |
| Packed Quantity | 1 |
