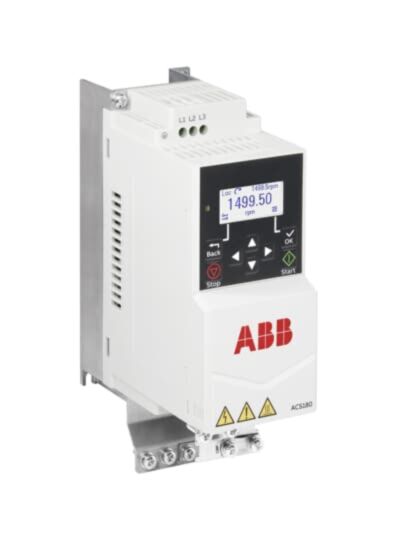

ACS180-04S-01A8-4 ABB 0.55kW Three Phase ABB ACS180 Variable Speed Drive

Why Choose the ABB ACS180-04S-01A8-4 Machinery Drive?

The ABB ACS180-04S-01A8-4 is a compact and reliable AC variable frequency drive (VFD) designed for precise speed and torque control of three-phase motors in machinery and industrial automation applications. As part of the ABB ACS180 machinery drive series, it is ideal for machine builders, panel builders and OEM manufacturers seeking dependable motor control in a space-saving format.

This drive combines essential motor control functions with modern performance features, helping improve machine efficiency, reduce mechanical stress and support smooth operation. The ACS180 series is designed for straightforward installation, easy commissioning and reliable operation in compact industrial control panels.

With a rated output power of 0.55 kW, a nominal output current of 1.8 A and a three-phase 380–480 V AC supply, the ACS180-04S-01A8-4 is well suited to small industrial motors used in conveyors, pumps, fans, compressors and production machinery. Its IP20 / Open Type enclosure is designed for installation inside suitable electrical cabinets.

Key Advantages

• Compact ABB ACS180 machinery drive for industrial motor control.
• 0.55 kW / 0.75 HP motor power rating suitable for small automation systems.
• 1.8 A nominal output current for dependable three-phase motor control.
• Three-phase 380–480 V AC input compatible with industrial power networks.
• Integrated Safe Torque Off (STO) safety functionality.
• Supports induction and permanent magnet motor control.
• Sensorless vector and V/f control for flexible machinery applications.
• Compact IP20 construction for efficient cabinet installation.

Key Features

• ABB ACS180 machinery drive series.
• 0.55 kW rated output power.
• 0.75 HP horsepower rating.
• 1.8 A nominal output current.
• Three-phase 380–480 V AC input supply.
• IP20 / Open Type enclosure rating.
• Integrated Safe Torque Off (STO) functionality.
• Output frequency up to 599 Hz.
• Sensorless vector control and V/f motor control.
• Coated circuit boards for improved reliability in industrial environments.
• Built-in energy optimisation for improved efficiency.
• Compact R0 frame size for control cabinet installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACS180 Machinery Drives
• Model: ACS180-04S-01A8-4
• Product ID: 3AXD50000716623
• Product type: AC variable frequency drive / machinery drive
• Rated output power: 0.55 kW
• Horsepower rating: 0.75 HP
• Rated output current: 1.8 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Output phases: Three phase
• Output frequency: up to 599 Hz
• Protection rating: IP20 / Open Type
• Mounting type: Cabinet / panel mounting
• Frame size: R0
• Control method: V/f and sensorless vector control
• Functional safety: Safe Torque Off (STO)
• Dimensions (H × W × D): approx. 174 × 70 × 143 mm

Compact Motor Control for Industrial Machinery

Variable frequency drives such as the ABB ACS180 regulate motor speed by adjusting output voltage and frequency. This enables smoother acceleration, improved process control, reduced mechanical stress and more efficient operation of industrial motors.

The ACS180 series is designed for compact machinery applications where reliable motor control, easy commissioning and efficient cabinet installation are important. With integrated STO, coated circuit boards and flexible motor control modes, the ACS180-04S-01A8-4 is well suited to modern machine automation systems.

Typical Applications

• Small conveyors and material handling systems.
• Pumps, fans and ventilation equipment.
• Compressors and light process machinery.
• Packaging and production equipment.
• Manufacturing and assembly systems.
• OEM machine building applications.
• Electrical control panels and compact automation cabinets.

Trusted by Machine Builders Worldwide

ABB ACS180 machinery drives are trusted by machine builders, automation engineers and industrial operators for compact, efficient and reliable motor control in modern machinery applications.
