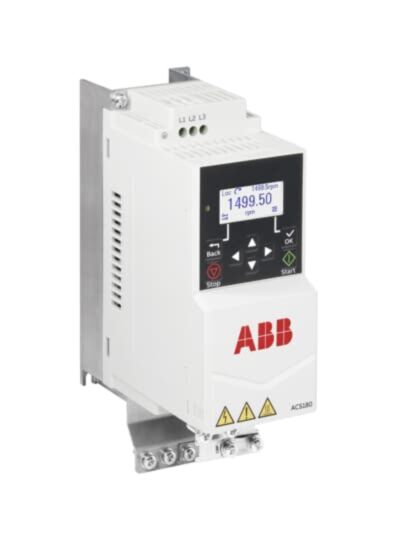

ACS180-04S-04A8-1 ABB 0.75kW Three Phase ABB ACS180 Variable Speed Drive

Why Choose the ABB ACS180-04S-04A8-1 Machinery Drive?

The ABB ACS180-04S-04A8-1 is a compact and cost-effective AC variable frequency drive (VFD) designed for reliable speed control of three-phase motors in machinery and light industrial applications. As part of the efficient ABB ACS180 machinery drive series, it is ideal for machine builders and OEM users who need dependable motor control in a compact format.

This drive provides essential motor control features for applications such as pumps, fans, conveyors, compressors, mixers and compact machinery. The ACS180 series is designed for straightforward commissioning and reliable machine performance, with built-in features that support efficient operation and simplified integration.

With a rated output power of 0.75 kW and a single-phase 200–240 V AC supply, the ACS180-04S-04A8-1 is suitable for small motor-driven systems where space, performance and ease of use are important. Its compact IP20 design supports wall or DIN rail installation in protected control environments.

Key Advantages

• Compact variable frequency drive designed for machinery applications.
• 0.75 kW motor power rating suitable for compact machines and automation equipment.
• 4.8 A nominal output current for reliable motor operation.
• Single-phase 200–240 V AC input for convenient low-voltage installations.
• Integrated Safe Torque Off (STO) safety function.
• Built-in Modbus RTU communication for automation integration.

Key Features

• ABB ACS180 machinery drive series.
• 0.75 kW rated output power.
• 4.8 A nominal output current.
• Single-phase 200–240 V AC input supply.
• IP20 protection rating.
• Integrated Safe Torque Off (STO) functionality.
• EMC filter C2 design.
• Built-in Modbus RTU communication.
• Wall or DIN rail mounting capability.
• Suitable for pumps, fans, conveyors, mixers and compressors.

Technical Specifications

• Manufacturer: ABB
• Series: ACS180 Machinery Drives
• Model: ACS180-04S-04A8-1
• Product ID: 3AXD50000716586
• Product type: AC variable frequency drive
• Rated output power: 0.75 kW
• Rated output current: 4.8 A
• Light-duty output current: 4.6 A
• Heavy-duty output power: 0.55 kW
• Heavy-duty output current: 3.5 A
• Input voltage: 200–240 V AC
• Input phases: Single phase
• Network frequency: 47–63 Hz
• Protection rating: IP20
• Mounting type: Wall / DIN rail mounting
• Frame size: R0
• Communication: Modbus RTU
• Width: approx. 70 mm
• Operating temperature: -10°C to +40°C

Compact Motor Control for Machinery Applications

Variable frequency drives such as the ABB ACS180 control motor speed by adjusting the voltage and frequency supplied to the motor. This allows machinery to run at the required speed, helping improve process control, reduce energy consumption and minimise mechanical stress.

The ACS180 series is designed for compact machines where reliable motor control and easy installation are essential. Its integrated safety, communication and control features make it suitable for both standalone equipment and connected automation systems.

Typical Applications

• Small conveyors and material handling equipment.
• Pumps and pressure systems.
• Fans and ventilation equipment.
• Compressors and compact machinery.
• Mixers, winders and machine tools.
• Automatic gates and doors.
• Packaging and light production machinery.
• OEM automation systems.

Trusted by Machine Builders Worldwide

ABB ACS180 machinery drives are used by machine builders, OEMs and maintenance engineers to deliver compact, reliable and efficient motor control across everyday machinery and automation applications.
