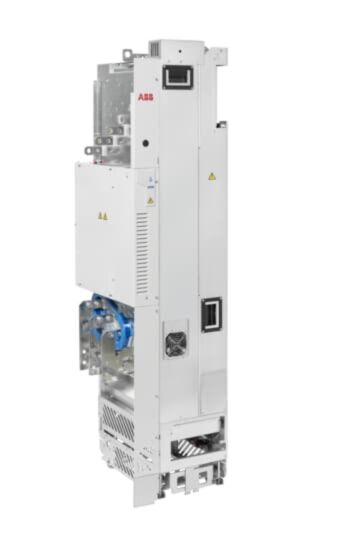

ACH580-34-505A-4 ABB 250kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-34-505A-4
Alt. SKU: 3AXD50000428205
Why Choose the ACH580-34-505A-4 [3AXD50000428205]
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The ultra-low drive module variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP00 enclosure as standard and for cabinet installation Also, IP20 enclosure is available.
Technical Specification
- Function: HVAC drive for controlling fans, pumps, compressors, air-handling units, and chillers.
- Input Voltage: 380 – 480 V, 3-phase.
- Output Current, Normal Use (In): 505 A.
- Output Power, Normal Use (Pn): 250 kW.
- Degree of Protection: IP00 standard (cabinet installation); IP20 available.
- Mounting Type: Module for cabinet integration.
- Communication Protocols: BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control and Monitoring: Includes control unit, PC connection, and optional Bluetooth capability.
- Weight: 365 kg (804.7 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the ACH580 HVAC drive?
The ACH580 HVAC drive is designed to control fans, pumps, compressors, air-handling units, and chillers for efficient HVAC system operation.
What is the input voltage range for the ACH580 HVAC drive?
The input voltage range is 380 – 480 V, 3-phase.
What is the output current rating for normal use?
The output current rating for normal use is 505 A.
What degree of protection does the ACH580 HVAC drive have?
The standard degree of protection is IP00 for cabinet installation, with an optional IP20 enclosure available.
What communication protocols are supported by the ACH580 HVAC drive?
The drive supports BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
Does the ACH580 HVAC drive have any built-in features to reduce installation time?
Yes, it includes an active supply unit, integrated low harmonic line filter, and an intuitive control panel to significantly reduce installation time.
What is the weight of the ACH580 HVAC drive?
The weight of the ACH580 HVAC drive is 365 kg (804.7 lb).
| Manufacturer Part Number | ACH580-34-505A-4 |
|---|---|
| Barcode | 6438177593959 |
| Packed Quantity | 1 |
| Height | 1741mm |
| Width | 713mm |
| Depth | 512mm |
| Amperage | 505A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP00 |
| KW Rating | 250kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000428205 |
