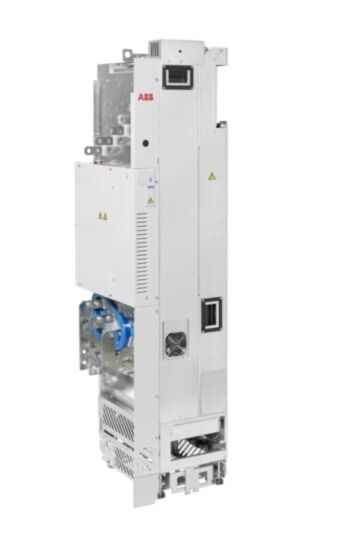

ACH580-34-293A-4 ABB 160kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ACH580-34-293A-4 [3AXD50000428175]

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The ultra-low drive module variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP00 enclosure as standard and for cabinet installation Also, IP20 enclosure is available.

Technical Specification

• Function: HVAC drive for controlling fans, pumps, compressors, air-handling units and chillers with energy-efficient operation.
• Input Voltage: 380 to 480 V, 3-phase.
• Output Current (Normal Use): 293 A.
• Output Power (Normal Use): 160 kW.
• Degree of Protection: IP00 (standard), IP20 available.
• Communication Protocols: BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
• Terminal Interfaces: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 digital outputs, 1 USB, 1 RS-485, 2 parallel ports.
• Mounting Type: Module suitable for cabinet installation.
• Altitude Rating: Up to 4000 m.
