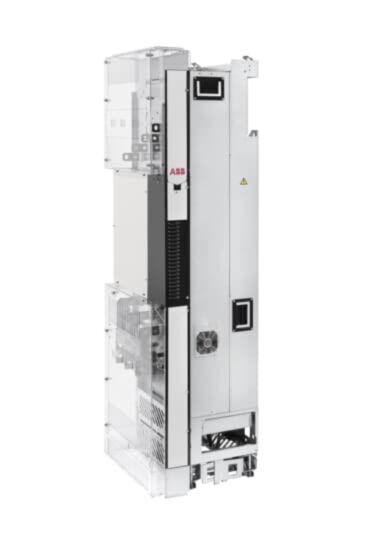

ACS880-34-302A-5 ABB 160kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-34-302A-5
Alt. SKU: 3AXD50000222629
Why Choose the ACS880-34-302A-5 [3AXD50000222629]
The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Technical Specification
- Function: Ultra-low harmonic drive module for industrial applications including cranes, conveyors, pumps, and compressors.
- Input Voltage: 380 to 500 V, 3-phase.
- Output Current (Normal Use): 302 A.
- Output Power (Normal Use): 160 kW.
- Degree of Protection: IP20 (open type enclosure, NEMA).
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control and I/O: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 2 digital outputs.
- Operating Temperature Range: -15 °C to +55 °C.
- Weight: 365 kg (805 lb).
- Mounting Type: Modular, suitable for cabinet installation with pedestal on wheels for mobility.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications can the ACS880-34 drive control?
The ACS880-34 drive can control a variety of applications including cranes, conveyors, pumps, compressors, extruders, winches, and fans, among others.
What is the input voltage range for the ACS880-34 drive?
The input voltage range for the ACS880-34 drive is 380 to 500 V, 3-phase.
What is the output current rating of the ACS880-34 drive?
The output current rating for normal use is 302 A.
What is the degree of protection for the ACS880-34 drive?
The ACS880-34 drive has a degree of protection rated at IP20 (open type enclosure, NEMA).
What communication protocols are supported by the ACS880-34 drive?
The drive supports CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP communication protocols.
How is the ACS880-34 drive mounted?
The ACS880-34 drive is modular and suitable for cabinet installation, with a pedestal on wheels for mobility.
What are the operating temperature limits for the ACS880-34 drive?
The operating temperature range for the ACS880-34 drive is -15 °C to +55 °C.
| Manufacturer Part Number | ACS880-34-302A-5 |
|---|---|
| Barcode | 6438177548492 |
| Packed Quantity | 1 |
| Height | 1741mm |
| Width | 713mm |
| Depth | 512mm |
| Amperage | 302A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 160kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 6 |
| Output Frequency | 500Hz |
| Output Voltage | 500VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/500VAC |
| VSD Range | ABB ACS880 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000222629 |
