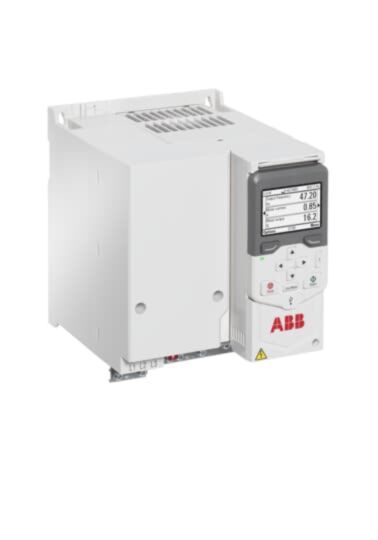

ACS480-04-17A5-2 ABB 4kW Three Phase ABB ACS480 Variable Speed Drive
MPN: ACS480-04-17A5-2
Alt. SKU: 3AXD50000217373
Special Price
£964.92
£804.10
Regular Price
£1,135.20
Why Choose the ACS480-04-17A5-2 [3AXD50000217373]
The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture. It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It's a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Technical Specification
- Function: Variable speed drive for compressors, fans, conveyors in light industries.
- Input Voltage: 200-240 V, 3-phase, 47.5-63 Hz.
- Output Current (Normal Use): 17.5 A.
- Output Power (Normal Use): 4 kW.
- Degree of Protection: IP20 (Open Type enclosure).
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control and Interface: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 digital outputs, USB connection.
- Mounting Type: Module, frame size R3.
- Operating Temperature: Maximum 50 °C.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications is the ACS480 suitable for?
The ACS480 is suitable for variable speed applications such as compressors, fans, and conveyors in light industries like food and beverage, logistics, warehousing, water and wastewater, and agriculture.
What is the input voltage range for the ACS480?
The ACS480 operates with an input voltage range of 200-240 V, 3-phase, at a frequency of 47.5-63 Hz.
What is the output current and power rating for normal use?
For normal use, the ACS480 has an output current of 17.5 A and an output power of 4 kW.
What is the degree of protection for the ACS480?
The ACS480 has a degree of protection rated at IP20, indicating it is an open type enclosure.
What communication protocols are supported by the ACS480?
The ACS480 supports several communication protocols including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
What are the mounting options for the ACS480?
The ACS480 features a module mounting type with a frame size of R3.
What is the maximum operating temperature for the ACS480?
The maximum operating temperature for the ACS480 is 50 °C.
| Manufacturer Part Number | ACS480-04-17A5-2 |
|---|---|
| Barcode | 6438177513131 |
| Packed Quantity | 1 |
| Height | 220mm |
| Width | 172mm |
| Depth | 208mm |
| Amperage | 17.5A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 4kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS480 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000217373 |
