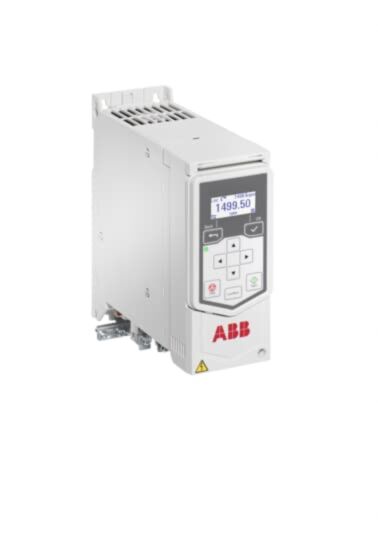

ACS480-04-02A4-2 ABB 0.37kW Three Phase ABB ACS480 Variable Speed Drive
MPN: ACS480-04-02A4-2
Alt. SKU: 3AXD50000212903
Special Price
£548.76
£457.30
Regular Price
£645.60
Why Choose the ACS480-04-02A4-2 [3AXD50000212903]
The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture. It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It's a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Technical Specification
- Function: Variable speed drive for compressors, fans, conveyors, and similar applications.
- Input Voltage: 200-240 V, 3-phase.
- Output Current (Normal Use): 2.4 A.
- Output Power (Normal Use): 0.37 kW.
- Protection Rating: IP20 (open type enclosure).
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control Interfaces: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 digital outputs.
- Mounting Type: Module, frame size R1.
- Sound Level: 63.1 dB(A).
- Maximum Operating Temperature: 50 °C.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications is the ACS480 suitable for?
The ACS480 is suitable for variable speed applications such as compressors, fans, and conveyors in light industries including food and beverage, logistics, water and wastewater, and agriculture.
What is the input voltage range for the ACS480?
The input voltage range for the ACS480 is 200-240 V, 3-phase.
What is the output current and power of the ACS480?
The output current is 2.4 A and the output power is 0.37 kW under normal use.
What is the protection rating of the ACS480?
The ACS480 has a protection rating of IP20, indicating it is an open type enclosure.
What communication protocols are supported by the ACS480?
The ACS480 supports CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP communication protocols.
What is the maximum operating temperature for the ACS480?
The maximum operating temperature for the ACS480 is 50 °C.
How is the ACS480 mounted?
The ACS480 is designed for module mounting with a frame size of R1.
| Manufacturer Part Number | ACS480-04-02A4-2 |
|---|---|
| Barcode | 6438177512868 |
| Packed Quantity | 1 |
| Height | 223mm |
| Width | 73mm |
| Depth | 208mm |
| Amperage | 2.4A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 0.37kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS480 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000212903 |
