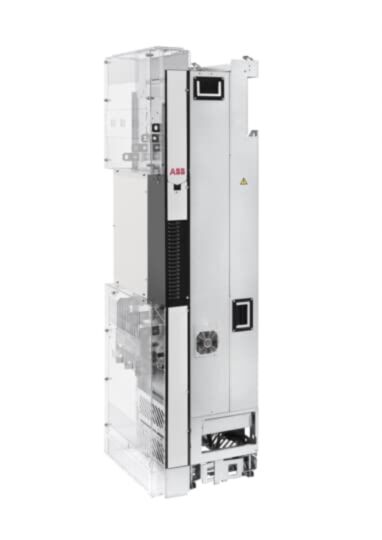

ACS880-34-585A-3 ABB 315kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-34-585A-3
Alt. SKU: 3AXD50000167678
Why Choose the ACS880-34-585A-3 [3AXD50000167678]
The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Technical Specification
- Function: Ultra-low harmonic drive module for industrial applications including cranes, conveyors, compressors, pumps, and fans.
- Input Voltage: 380–415 V, 3-phase, 47.5–63 Hz.
- Output Current (Normal Use): 585 A.
- Output Power (Normal Use): 315 kW.
- Degree of Protection: IP20 (open type).
- Mounting Type: Module, bookshelf variant with pedestal on wheels.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP, PROFIsafe.
- Operating Temperature: -15 °C to +55 °C.
- Weight: 365 kg (805 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What applications can the ACS880-34 drive control?
The ACS880-34 drive can control various applications, including cranes, conveyors, compressors, pumps, fans, extruders, winches, and more.
What is the input voltage range for the ACS880-34 drive?
The input voltage range is 380–415 V, 3-phase, with a frequency of 47.5–63 Hz.
What is the output current rating for normal use?
The output current for normal use is 585 A.
What is the degree of protection for the ACS880-34 drive?
The drive has a degree of protection rated at IP20 (open type).
How is the ACS880-34 drive mounted?
The drive is a bookshelf variant that can be mounted using a pedestal on wheels for easy installation.
What communication protocols are supported by the ACS880-34 drive?
The drive supports various communication protocols, including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP, and PROFIsafe.
What is the operating temperature range for the ACS880-34 drive?
The operating temperature range is -15 °C to +55 °C.
| Manufacturer Part Number | ACS880-34-585A-3 |
|---|---|
| Barcode | 6438177548454 |
| Packed Quantity | 1 |
| Height | 1741mm |
| Width | 713mm |
| Depth | 512mm |
| Amperage | 585A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 6 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 315kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces other | 6 |
| Output Frequency | 500Hz |
| Output Voltage | 415VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/415VAC |
| VSD Range | ABB ACS880 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000167678 |
