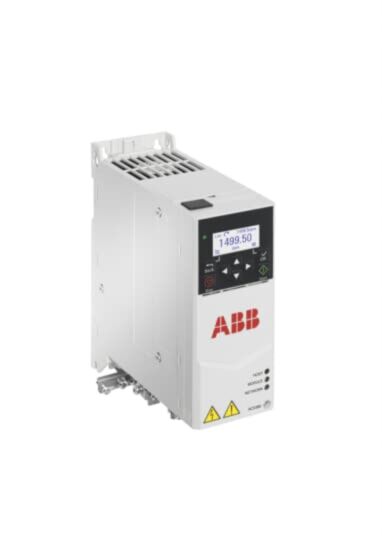

ACS380-040C-03A7-2 ABB 0.55kW Three Phase ABB ACS380 Variable Speed Drive
MPN: ACS380-040C-03A7-2
Alt. SKU: 3AXD50000162086
Why Choose the ACS380-040C-03A7-2 [ACS380-040C-03A7-2]
ACS380-040C-03A7-2
Technical Specification
- Product Name: ACS380-040C-03A7-2.
- Function: Industrial three-phase electrical component.
- Input Voltage: 208 – 240 V.
- Output Current (Heavy-Duty): 2.4 A.
- Output Current (Light Overload): 3.5 A.
- Output Power (Heavy-Duty): 0.5 Hp.
- Output Power (Light Overload): 0.75 Hp.
- Frequency: 50/60 Hz.
- Degree of Protection: IP20.
- Enclosure Type: Open (NEMA Type).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACS380-040C-03A7-2?
The input voltage range is 208 – 240 V.
What is the maximum output current for heavy-duty applications?
The maximum output current for heavy-duty applications is 2.4 A.
What is the output power rating for light overload?
The output power rating for light overload is 0.75 Hp.
What is the degree of protection for the ACS380-040C-03A7-2?
The degree of protection is IP20.
Is the ACS380-040C-03A7-2 suitable for outdoor use?
No, it has an open enclosure type (NEMA Type) and is not suitable for outdoor use.
What frequency does the ACS380-040C-03A7-2 operate at?
The frequency is 50/60 Hz.
What standards and approvals does the ACS380-040C-03A7-2 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | ACS380-040C-03A7-2 |
|---|---|
| Packed Quantity | 1 |
| Height | 223mm |
| Width | 70mm |
| Depth | 176mm |
| Amperage | 3.7A |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 2 |
| Digital Outputs | 1 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP20 |
| KW Rating | 0.55kW |
| Number of HW-interfaces other | 3 |
| Output Frequency | 599Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS380 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000162086 |
