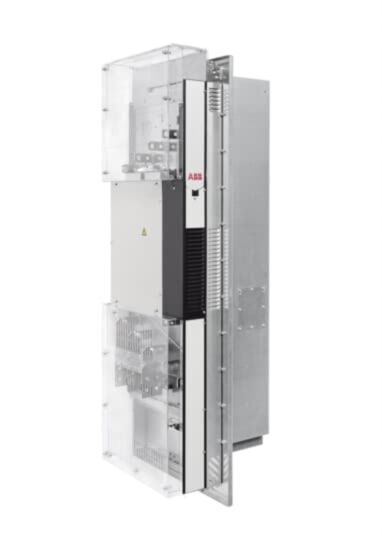

ACS880-04F-369A-7 ABB 355kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-04F-369A-7
Alt. SKU: 3AXD50000158935
Why Choose the ACS880-04F-369A-7 [3AXD50000158935]
Flange mounting (push through mounting) version of ACS880-04
Technical Specification
- Product Name: ACS880-04F-369A-7 (Flange Mounting Version)
- Function: 3-phase industrial electrical drive module
- Input Voltage: 525 – 690 V
- Output Current (Normal Use): 369 A
- Output Power (Normal Use): 355 kW
- Degree of Protection: IP20 (Open Type)
- Mounting Type: Flange (push through) mounting
- Operating Humidity: 5 – 95% RH
- Frequency Range: 47.5 – 63 Hz
- Weight: 224 kg
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACS880-04F-369A-7?
The input voltage range is 525 – 690 V.
What is the output current rating for normal use?
The output current rating is 369 A.
What is the output power of the ACS880-04F-369A-7?
The output power for normal use is 355 kW.
What type of mounting is used for this drive module?
This drive module uses flange (push through) mounting.
What is the degree of protection for the ACS880-04F-369A-7?
The degree of protection is IP20 (Open Type).
What is the operating humidity range for this product?
The operating humidity range is 5 – 95% RH.
What frequency range does the ACS880-04F-369A-7 operate within?
The frequency range is 47.5 – 63 Hz.
| Manufacturer Part Number | ACS880-04F-369A-7 |
|---|---|
| Barcode | 6438177634850 |
| Packed Quantity | 1 |
| Height | 1733mm |
| Width | 620mm |
| Depth | 477mm |
| Amperage | 369A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe |
| Digital Inputs | 6 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 355kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces other | 4 |
| Output Frequency | 500Hz |
| Output Voltage | 690VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 525/690VAC |
| VSD Range | ABB ACS880 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000158935 |
