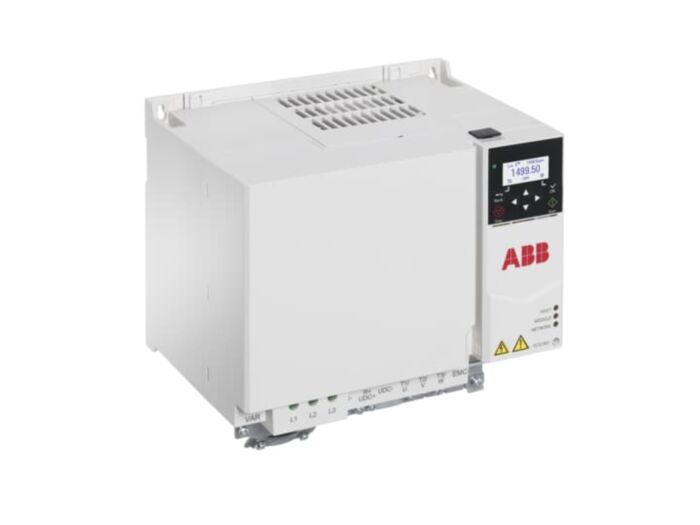

ACS380-042N-032A-4 ABB 15kW Three Phase ABB ACS380 Variable Speed Drive
MPN: ACS380-042N-032A-4
Alt. SKU: 3AXD50000136735
Why Choose the ACS380-042N-032A-4 [3AXD50000136735]
The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
Technical Specification
- Function: Machinery drive with integrated functional safety for motor control and safety system integration via PROFIsafe over PROFINET.
- Input Voltage: 380 – 480 V, 3-phase.
- Output Current (Normal Use): 32.0 A.
- Output Power (Normal Use): 15 kW.
- Degree of Protection: IP20, Open type enclosure.
- Mounting Type: Module for cabinet building.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP.
- Operating Temperature: Maximum 50 °C.
- Weight: 5.3 kg (11.7 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACS380 drive?
The ACS380 drive operates within an input voltage range of 380 – 480 V, 3-phase.
What is the maximum output current for normal use?
The maximum output current for normal use is 32.0 A.
Can the ACS380 drive be integrated into a safety system?
Yes, it features integrated functional safety and can be part of a safety system via PROFIsafe over PROFINET.
What is the degree of protection for the ACS380 drive?
The drive has a degree of protection rated at IP20, indicating it is an open type enclosure.
What communication protocols are supported by the ACS380 drive?
The ACS380 supports multiple communication protocols including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, and TCP/IP.
What is the maximum operating temperature for the ACS380 drive?
The maximum operating temperature is 50 °C.
What is the weight of the ACS380 drive?
The weight of the ACS380 drive is 5.3 kg (11.7 lb).
| Manufacturer Part Number | ACS380-042N-032A-4 |
|---|---|
| Barcode | 6438177597889 |
| Packed Quantity | 1 |
| Height | 240mm |
| Width | 260mm |
| Depth | 176mm |
| Amperage | 32A |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP20 |
| KW Rating | 15kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces other | 3 |
| Output Frequency | 599Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACS380 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000136735 |
