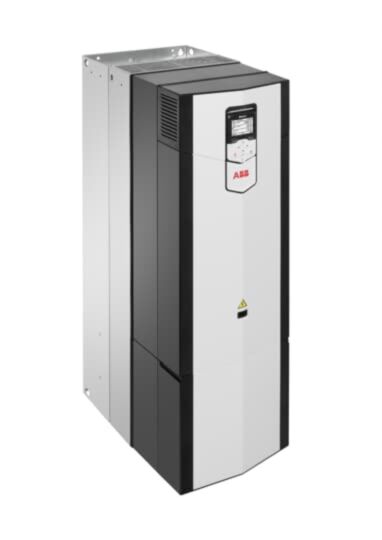

ACS880-31-206A-3 ABB 110kW Three Phase ABB ACS880 Variable Speed Drive

Why Choose the ABB ACS880-31-206A-3 Low Harmonic Drive?

The ABB ACS880-31-206A-3 (Part Number: 3AXD50000121298) is a high-performance low harmonic AC variable frequency drive (VFD) designed for demanding industrial applications requiring clean power quality and precise motor control. As part of the ABB ACS880 industrial drive series, it delivers advanced performance, reduced harmonic distortion and improved system efficiency.

This drive features an integrated active front end (AFE) and low harmonic line filter, eliminating the need for external harmonic mitigation equipment. This ensures compliance with strict power quality standards while simplifying installation and reducing overall system footprint. :contentReference[oaicite:0]{index=0}

With a rated output power of 110 kW, a nominal output current of 206 A and a three-phase 380–415 V AC supply, the ACS880-31-206A-3 is ideal for applications such as conveyors, pumps, compressors and heavy industrial processing systems. :contentReference[oaicite:1]{index=1}

Key Advantages

• Low harmonic drive with integrated filtering for improved power quality.
• 110 kW motor power rating for heavy-duty applications.
• Eliminates need for external harmonic filters or transformers.
• Unity power factor improves energy efficiency.
• Compact integrated solution reduces installation complexity.
• Enhances system reliability and compliance with harmonic standards.

Key Features

• ABB ACS880-31 low harmonic drive series.
• 110 kW rated output power.
• 206 A nominal output current.
• Three-phase 380–415 V AC input supply.
• Integrated active front end (AFE) and harmonic filter.
• Advanced Direct Torque Control (DTC) for precise motor control.
• Wide communication support including PROFINET, EtherNet/IP, Modbus and PROFIBUS.
• Built-in Safe Torque Off (STO) safety function.

Technical Specifications

• Manufacturer: ABB
• Series: ACS880-31 Low Harmonic Drives
• Model: ACS880-31-206A-3
• Part number: 3AXD50000121298
• Product type: Low harmonic AC variable frequency drive
• Rated output power: 110 kW
• Rated output current: 206 A
• Input voltage: 380–415 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP21
• Mounting type: Wall-mounted
• Dimensions (H × W × D): approx. 965 × 300 × 430 mm
• Weight: approx. 112–118 kg :contentReference[oaicite:2]{index=2}

Low Harmonic Performance for Industrial Systems

The ACS880-31 reduces harmonic distortion by using an integrated active front end, ensuring clean power supply conditions without additional filtering components. This improves system efficiency, reduces stress on electrical infrastructure and ensures compliance with harmonic standards in industrial environments. :contentReference[oaicite:3]{index=3}

Combined with ABB’s Direct Torque Control (DTC), the drive provides fast response and precise motor control, making it suitable for demanding applications requiring high performance and reliability.

Typical Applications

• Industrial conveyors and material handling.
• Pumps, fans and compressors.
• Extruders and processing equipment.
• Water and wastewater treatment plants.
• Mining, metals and heavy industry.
• Power plants and energy systems.

Trusted in High-Performance Industrial Systems

ABB ACS880 low harmonic drives are trusted worldwide for delivering clean power, precise motor control and high efficiency in demanding industrial applications.
