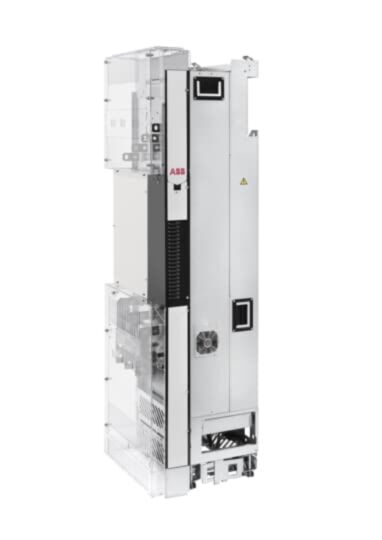

ACS880-14-210A-7 ABB 200kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-14-210A-7
Alt. SKU: 3AXD50000115273
Why Choose the ACS880-14-210A-7 [3AXD50000115273]
The ACS880-14 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-14 regenerative drive module captures and utilizes braking energy which results in cost savings for the user. With mechanical or resistor braking energy is wasted as heat and additional cooling is often required, whereas regenerative drive operation offers significant savings in energy consumption and cooling. The drive reaches a unity power factor, meaning that electrical energy is used to its full potential. Equipped with an active supply unit and integrated low harmonic line filter, the regenerative drive produces exceptionally low harmonic content. These modules are specifically designed for machine builders and systems integrators. Bookshelf and flat variants can easily be pushed inside the cabinet using a pedestal on wheels.
Technical Specification
- Function: Regenerative drive module for diverse industrial applications including cranes, conveyors, pumps, and compressors.
- Input Voltage: 525 to 690 V, 3-phase.
- Output Current (Normal Use): 210 A.
- Output Power (Normal Use): 200 kW.
- Degree of Protection: IP20, Open Type enclosure (NEMA).
- Operating Temperature Range: -15 °C to +55 °C.
- Power Factor: Unity (1.0) for optimal energy use.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Mounting Type: Module, suitable for bookshelf and flat variants with pedestal on wheels.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What types of applications can the ACS880-14 drive control?
The ACS880-14 drive can control a variety of applications including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, pumps, and fans.
What is the input voltage range for the ACS880-14 drive?
The input voltage range for the ACS880-14 drive is 525 to 690 V, 3-phase.
What is the output current and power rating of the ACS880-14 drive?
The output current for normal use is 210 A, and the output power is 200 kW.
What is the degree of protection for the ACS880-14 drive?
The ACS880-14 drive has a degree of protection rated at IP20, indicating it is an open type enclosure (NEMA).
What are the communication protocols supported by the ACS880-14 drive?
The ACS880-14 drive supports communication protocols including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
What is the operating temperature range for the ACS880-14 drive?
The operating temperature range for the ACS880-14 drive is -15 °C to +55 °C.
How is the ACS880-14 drive mounted?
The ACS880-14 drive is designed as a module suitable for bookshelf and flat variants, which can be easily pushed inside the cabinet using a pedestal on wheels.
| Manufacturer Part Number | ACS880-14-210A-7 |
|---|---|
| Barcode | 6438177549437 |
| Packed Quantity | 1 |
| Height | 1741mm |
| Width | 713mm |
| Depth | 512mm |
| Amperage | 210A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| 4-quadrant operation possible | Yes |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP20 |
| KW Rating | 200kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 6 |
| Output Frequency | 500Hz |
| Output Voltage | 690VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 525/690VAC |
| VSD Range | ABB ACS880 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000115273 |
