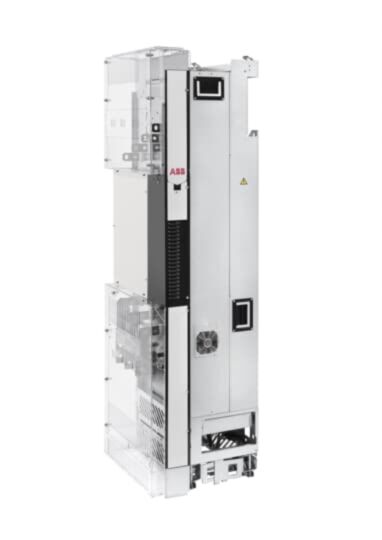

ACS880-14-174A-7 ABB 160kW Three Phase ABB ACS880 Variable Speed Drive

Why Choose the ACS880-14-174A-7 [3AXD50000115266]

The ACS880-14 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-14 regenerative drive module captures and utilizes braking energy which results in cost savings for the user. With mechanical or resistor braking energy is wasted as heat and additional cooling is often required, whereas regenerative drive operation offers significant savings in energy consumption and cooling. The drive reaches a unity power factor, meaning that electrical energy is used to its full potential. Equipped with an active supply unit and integrated low harmonic line filter, the regenerative drive produces exceptionally low harmonic content. These modules are specifically designed for machine builders and systems integrators. Bookshelf and flat variants can easily be pushed inside the cabinet using a pedestal on wheels.

Technical Specification

• Function: Regenerative drive for industrial motor control.
• Input Voltage: 525 to 690 V, 3-phase.
• Output Current (Normal Use): 174 A.
• Output Power (Normal Use): 160 kW.
• Degree of Protection: IP20, open type enclosure.
• Mounting Type: Module, suitable for cabinet installation with pedestal on wheels.
• Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
• Operating Temperature Range: -15 °C to +55 °C.
• Efficiency Level: IE2 with unity power factor operation.
• Weight: 365 kg (805 lb).
