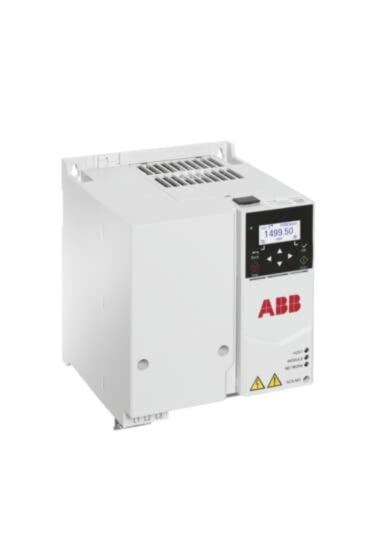

ACS380-040N-25A0-2 ABB 5.5kW Three Phase ABB ACS380 Variable Speed Drive
MPN: ACS380-040N-25A0-2
Alt. SKU: 3AXD50000110476
Special Price
£843.54
£702.95
Regular Price
£992.40
Why Choose the ACS380-040N-25A0-2 [3AXD50000110476]
The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
Technical Specification
- Function: Machinery drive with integrated functional safety via PROFIsafe over PROFINET.
- Input Voltage: 200–240 V AC, 3-phase.
- Output Current (Normal Use): 25.0 A.
- Output Power (Normal Use): 5.5 kW.
- Degree of Protection: IP20, Open Type enclosure.
- Operating Humidity: 5–95% RH.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP.
- Mounting Type: Module.
- Weight: 3.3 kg (7.275 lb).
- Sound Level: 65.8 dB(A).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACS380 drive?
The input voltage range for the ACS380 drive is 200–240 V AC, 3-phase.
What is the output current and power rating for normal use?
The output current for normal use is 25.0 A, and the output power is 5.5 kW.
What type of mounting does the ACS380 drive support?
The ACS380 drive supports module mounting.
What communication protocols are compatible with the ACS380 drive?
The ACS380 drive is compatible with CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, and TCP/IP.
What is the degree of protection for the ACS380 drive?
The ACS380 drive has a degree of protection of IP20, indicating it is an open type enclosure.
Can the ACS380 drive be integrated into a machine's safety system?
Yes, the ACS380 drive features integrated functional safety via PROFIsafe over PROFINET, allowing it to be part of the machine's safety system.
What is the operating humidity range for the ACS380 drive?
The operating humidity range for the ACS380 drive is 5–95% RH.
| Manufacturer Part Number | ACS380-040N-25A0-2 |
|---|---|
| Barcode | 6438177617839 |
| Packed Quantity | 1 |
| Height | 241.3mm |
| Width | 170mm |
| Depth | 176mm |
| Amperage | 25A |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP20 |
| KW Rating | 5.5kW |
| Number of HW-interfaces other | 3 |
| Output Frequency | 599Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS380 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000110476 |
