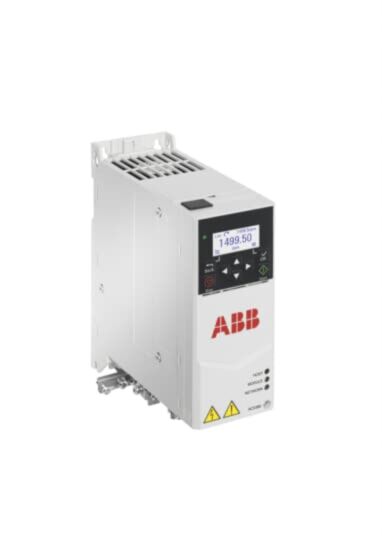

ACS380-040N-09A8-2 ABB 2.2kW Three Phase ABB ACS380 Variable Speed Drive

Why Choose the ABB ACS380-040N-09A8-2 Machinery Drive?

The ABB 3AXD50000108398, also known as the ACS380-040N-09A8-2, is a compact and high-performance AC variable frequency drive (VFD) engineered for precise motor control in machinery and OEM applications. As part of the advanced ABB ACS380 machinery drive series, it provides reliable performance, flexible integration and efficient operation across modern industrial automation systems.

Designed specifically for machine builders, this drive enables seamless integration into control architectures with adaptive programming and extensive communication support. Its modular design reduces installation complexity while ensuring robust performance in demanding industrial environments. :contentReference[oaicite:0]{index=0}

With a rated output power of 2.2 kW, 9.8 A nominal current and a three-phase 200–240 V AC supply, the ACS380-040N-09A8-2 is ideal for conveyors, mixers, cranes and general machinery requiring accurate speed and torque control. :contentReference[oaicite:1]{index=1}

Key Advantages

• Compact machinery drive designed for OEM applications.
• 2.2 kW motor power rating for industrial machinery.
• Advanced sensorless vector control for precise motor performance.
• Integrated functional safety via PROFIsafe.
• Flexible connectivity with multiple industrial communication protocols.
• Reduces engineering time with built-in functionality.

Key Features

• ABB ACS380 machinery drive series.
• 2.2 kW rated output power.
• 9.8 A nominal output current.
• Three-phase 200–240 V AC input supply.
• Adaptive programming for customised machine control.
• Supports PROFINET, EtherNet/IP, Modbus, PROFIBUS and CAN.
• Integrated safety functionality with safe motor stop capability.
• Compact module design for panel mounting.

Technical Specifications

• Manufacturer: ABB
• Series: ACS380 Machinery Drives
• Model: ACS380-040N-09A8-2
• Product ID: 3AXD50000108398
• Product type: AC variable frequency drive module
• Rated output power: 2.2 kW
• Rated output current: 9.8 A
• Input voltage: 200–240 V AC
• Input phases: 3-phase
• Frequency: 47.5 – 63 Hz
• Output frequency: 0 – 599 Hz
• Protection rating: IP20
• Mounting type: Module mounting
• Frame size: R1
• Dimensions (H × W × D): approx. 223 × 70 × 176 mm
• Weight: approx. 1.4 kg
• Operating temperature: up to approx. 50 °C
• Efficiency level: IE2

Designed for Advanced Machinery Control

The ABB ACS380 series is specifically developed for machine builders, providing reliable motor control and seamless integration into automation systems. It supports a wide range of motor types and applications, including material handling, food processing and textile machinery. :contentReference[oaicite:2]{index=2}

With integrated safety features, adaptive programming and extensive communication capabilities, the ACS380 drive enhances machine performance while reducing system complexity and lifecycle costs. :contentReference[oaicite:3]{index=3}

Typical Applications

• Conveyors and material handling systems.
• Mixers and processing equipment.
• Textile and packaging machinery.
• Cranes and lifting systems.
• Extruders and manufacturing equipment.
• OEM automation and machine building.

Trusted by Machine Builders Worldwide

ABB ACS380 machinery drives are trusted globally for delivering compact design, advanced control and reliable performance in industrial automation systems.
