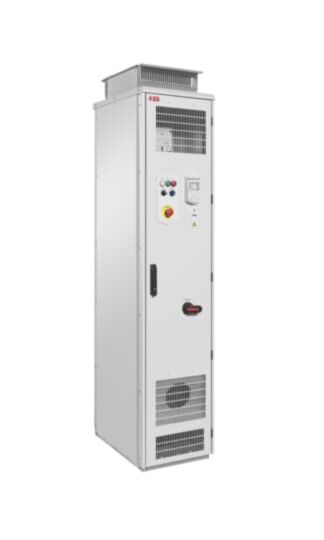

ACH580-07-0725A-4 ABB 400kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-07-0725A-4
Alt. SKU: 3AXD50000050473
Why Choose the ACH580-07-0725A-4 [3AXD50000050473]
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Technical Specification
- Function: HVAC drive for controlling fans, pumps, compressors, air-handling units, and chillers.
- Input Voltage: 380 to 480 V, 3-phase.
- Output Current (Normal Use): 725 A.
- Output Power (Normal Use): 400 kW.
- Degree of Protection: IP21 standard (cabinet-built variant).
- Operating Temperature Range: 0 °C to 40 °C.
- Communication Protocols: BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Mounting Type: Cabinet built, frame size R11.
- Control Interfaces: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 digital outputs, USB port.
- Weight: 440 kg (970 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACH580 HVAC drive?
The input voltage range for the ACH580 HVAC drive is 380 to 480 V, 3-phase.
What types of equipment can the ACH580 drive control?
The ACH580 drive can control fans, pumps, compressors, air-handling units, and chillers.
What is the degree of protection for the standard cabinet-built variant?
The standard cabinet-built variant has a degree of protection of IP21.
What is the maximum output current for normal use?
The maximum output current for normal use is 725 A.
What communication protocols are supported by the ACH580 drive?
The ACH580 drive supports BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
What is the operating temperature range for the ACH580 HVAC drive?
The operating temperature range is 0 °C to 40 °C.
Is there an option for remote monitoring of the drive?
Yes, the ACH580 drive has optional Bluetooth® capability for remote commissioning and monitoring.
| Manufacturer Part Number | ACH580-07-0725A-4 |
|---|---|
| Packed Quantity | 1 |
| Height | 2145mm |
| Width | 830mm |
| Depth | 698mm |
| Amperage | 725A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP |
| Digital Inputs | 6 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 400kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | Estonia |
| Alternative Product SKU | 3AXD50000050473 |
