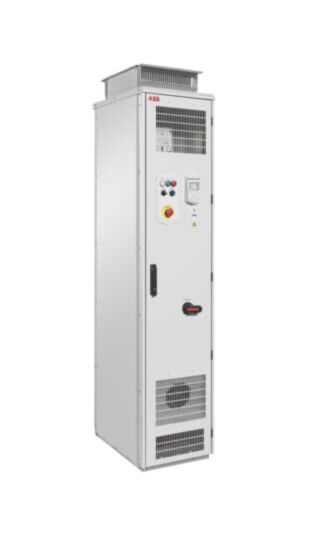

ACH580-07-0430A-4 ABB 250kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-07-0430A-4
Alt. SKU: 3AXD50000049035
Why Choose the ACH580-07-0430A-4 [3AXD50000049035]
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Technical Specification
- Function: HVAC drive for controlling fans, pumps, compressors, air-handling units, and chillers.
- Input Voltage: 380 to 480 V, three-phase.
- Output Current (Normal Use): 430 A.
- Output Power (Normal Use): 250 kW.
- Degree of Protection: IP21 standard, with IP42 and IP54 options available.
- Mounting Type: Cabinet-built, Frame Size R9.
- Communication Protocols: BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Controls and Interfaces: Includes control unit and PC connection; 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 digital outputs, 1 RS-485 serial, 1 USB.
- Operating Temperature: 0 °C to 35 °C.
- Sound Level: 68 dB(A).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the ACH580 HVAC drive?
The ACH580 HVAC drive is designed to control fans, pumps, compressors, air-handling units, and chillers for efficient HVAC operation.
What input voltage range does the ACH580 support?
The ACH580 operates within an input voltage range of 380 to 480 V, three-phase.
What are the available degrees of protection for the ACH580?
The ACH580 is available in IP21 as standard, with optional IP42 and IP54 variants.
What communication protocols are supported by the ACH580?
The ACH580 supports BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP protocols.
What is the maximum output current of the ACH580 during normal use?
The maximum output current during normal use is 430 A.
What is the operating temperature range for the ACH580?
The operating temperature range for the ACH580 is 0 °C to 35 °C.
How does the optional Bluetooth® capability enhance the ACH580?
The optional Bluetooth® capability allows for remote commissioning and monitoring of the drive.
| Manufacturer Part Number | ACH580-07-0430A-4 |
|---|---|
| Packed Quantity | 1 |
| Height | 2145mm |
| Width | 530mm |
| Depth | 673mm |
| Amperage | 430A |
| Analog Input | 2 |
| Analog Output | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP |
| Digital Inputs | 6 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 250kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | Estonia |
| Alternative Product SKU | 3AXD50000049035 |
