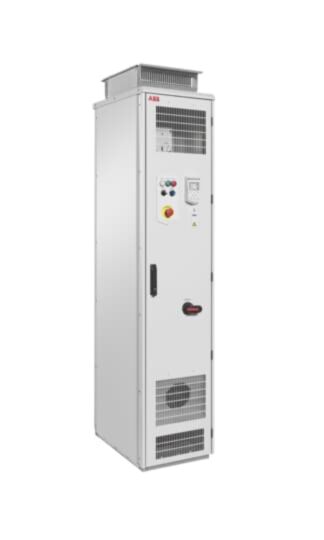

ACH580-07-0363A-4 ABB 200kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-07-0363A-4
Alt. SKU: 3AXD50000049034
Why Choose the ACH580-07-0363A-4 [3AXD50000049034]
ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Technical Specification
- Function: HVAC drive for controlling fans, pumps, compressors, air-handling units, and chillers.
- Input Voltage: 380 to 480 V, 3-phase.
- Output Current (Normal Use): 363 A.
- Output Power (Normal Use): 200 kW.
- Degree of Protection: IP21 standard (IP42 and IP54 variants available).
- Mounting Type: Cabinet-built with NEMA Type 1 enclosure.
- Communication Protocols: BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP.
- Control & Connectivity: Includes control unit and PC connection; USB and RS-485 interfaces.
- Operating Temperature Range: 0 °C to 40 °C.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACH580 HVAC drive?
The ACH580 HVAC drive operates within an input voltage range of 380 to 480 V, 3-phase.
What types of equipment can the ACH580 HVAC drive control?
This drive can control fans, pumps, compressors, air-handling units, and chillers.
What are the available degrees of protection for the ACH580 HVAC drive?
The standard degree of protection is IP21, with optional variants available in IP42 and IP54.
What is the output current and power rating for normal use?
The output current for normal use is 363 A, and the output power is 200 kW.
What communication protocols are supported by the ACH580 HVAC drive?
The drive supports BACnet, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, PROFIBUS, PROFINET IO, and TCP/IP.
What is the operating temperature range for the ACH580 HVAC drive?
The operating temperature range is from 0 °C to 40 °C.
What type of mounting is used for the ACH580 HVAC drive?
The ACH580 HVAC drive features a cabinet-built design with a NEMA Type 1 enclosure.
| Manufacturer Part Number | ACH580-07-0363A-4 |
|---|---|
| Packed Quantity | 1 |
| Height | 2145mm |
| Width | 530mm |
| Depth | 673mm |
| Amperage | 363A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 200kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| Manufacturer | ABB |
| Country of Manufacture | Estonia |
| Alternative Product SKU | 3AXD50000049034 |
