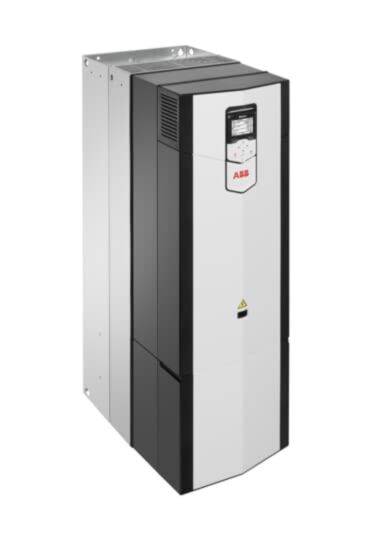

ACS880-11-206A-3 ABB 110kW Three Phase ABB ACS880 Variable Speed Drive

Why Choose the ABB ACS880-11-206A-3 Regenerative Industrial Drive?

The ABB ACS880-11-206A-3 (Part Number: 3AXD50000046897) is a high-performance regenerative AC variable frequency drive (VFD) designed for demanding industrial applications requiring precise motor control and energy efficiency. As part of the ABB ACS880 industrial drive series, it delivers advanced performance, flexibility and reliability across heavy-duty sectors.

This drive features a fully integrated active front end (AFE), enabling regenerative operation. Instead of dissipating braking energy as heat, it returns energy back to the supply network, significantly improving overall system efficiency and reducing cooling requirements. :contentReference[oaicite:0]{index=0}

With a rated output power of 110 kW, a nominal output current of 206 A and a three-phase 380–480 V AC supply, the ACS880-11-206A-3 is ideal for applications involving cyclic braking such as cranes, hoists, conveyors and test benches. :contentReference[oaicite:1]{index=1}

Key Advantages

• Regenerative drive technology returns braking energy to the grid.
• 110 kW motor power rating for heavy industrial applications.
• Reduces energy losses compared to resistor braking.
• Unity power factor operation for improved electrical efficiency.
• Compact integrated solution with no need for external regenerative units.
• Improves energy efficiency, sustainability and system performance.

Key Features

• ABB ACS880-11 regenerative industrial drive series.
• 110 kW rated output power.
• 206 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated active front end (AFE) for energy regeneration.
• Advanced Direct Torque Control (DTC) for precise motor control.
• Supports multiple communication protocols including PROFINET, EtherNet/IP and Modbus.
• Wall-mounted compact design for industrial installations.

Technical Specifications

• Manufacturer: ABB
• Series: ACS880-11 Regenerative Drives
• Model: ACS880-11-206A-3
• Part number: 3AXD50000046897
• Product type: Regenerative AC variable frequency drive
• Rated output power: 110 kW
• Rated output current: 206 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP21
• Mounting type: Wall-mounted
• Dimensions (H × W × D): approx. 965 × 300 × 430 mm
• Weight: approx. 118 kg :contentReference[oaicite:2]{index=2}

Regenerative Energy Control for Industrial Efficiency

The ACS880-11 series enables efficient motor control by returning braking energy to the supply network rather than dissipating it as heat. This significantly reduces energy consumption and improves system efficiency, especially in applications with frequent braking cycles. :contentReference[oaicite:3]{index=3}

Its advanced control capabilities and integrated design make it suitable for complex industrial processes requiring dynamic performance, high reliability and energy optimisation.

Typical Applications

• Cranes, hoists and lifting equipment.
• Conveyors and material handling systems.
• Winders, unwinders and test benches.
• Extruders and processing equipment.
• Elevators and dynamic load applications.
• Heavy-duty industrial automation systems.

Trusted in Energy-Efficient Industrial Systems

ABB ACS880 regenerative drives are trusted worldwide for delivering energy-efficient motor control, reducing power losses and improving sustainability in industrial operations.
