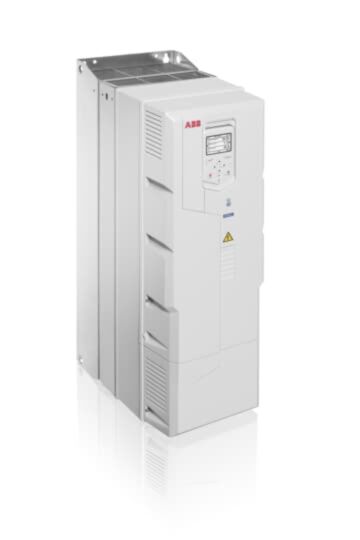

ACH580-31-062A-4 ABB 30kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-31-062A-4 Ultra-Low Harmonic HVAC Drive?

The ABB 3AXD50000045383 corresponds to the ACH580-31-062A-4 ultra-low harmonic HVAC variable speed drive, engineered specifically for building automation and climate control systems. Designed for controlling fans, pumps, compressors and air-handling equipment, this drive provides reliable motor control while significantly reducing electrical harmonic distortion.

Delivering 30 kW rated motor power and 62 A output current on a 380-480 V three-phase supply, the drive includes integrated harmonic filtering that reduces current harmonics to extremely low levels, typically below 3% THDi. This allows installation without additional harmonic filters or specialised transformers, simplifying system design and installation.

Part of ABB’s trusted ACH580 HVAC drive family, the ultra-low harmonic model integrates advanced control algorithms, communication options and built-in HVAC functionality to ensure energy-efficient operation in commercial buildings, hospitals, industrial facilities and infrastructure projects.

Key Advantages

• Designed specifically for HVAC systems including fans, pumps and air-handling units.
• Ultra-low harmonic design reduces network distortion to <3% THDi.
• Delivers 30 kW motor control with 62 A output current.
• Integrated harmonic filtering removes the need for external filters.
• Improves energy efficiency and system reliability.
• Part of ABB’s advanced ACH580 building automation drive platform.

Key Features

• ACH580-31 ultra-low harmonic HVAC drive.
• 30 kW rated motor power.
• 62 A continuous output current.
• 380-480 V AC three-phase supply.
• Integrated active supply unit and harmonic filtering.
• Wall-mounted drive design for building automation systems.
• Advanced HVAC control features for pumps and fans.
• Supports multiple industrial and building automation protocols.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-31-062A-4
• Product ID: 3AXD50000045383
• Drive type: Ultra-low harmonic AC variable frequency drive
• Rated motor power: 30 kW
• Rated output current: 62 A
• Input voltage: 380-480 V AC
• Input phases: Three-phase
• Supply frequency: 50 / 60 Hz
• Harmonic distortion: typically < 3% THDi
• Protection class: IP21 (Type 1 enclosure)
• Mounting type: Wall mounted
• Frame size: R6
• Typical applications: HVAC pumps, fans, compressors and air handling units

Ultra-Low Harmonic Drive Performance

Electrical harmonics generated by variable speed drives can affect power quality and system reliability. The ABB ACH580-31 ultra-low harmonic drive incorporates an active supply unit and integrated line filtering to minimise harmonic distortion, enabling reliable operation even in networks with strict harmonic limits.

This architecture simplifies installation while helping engineers comply with harmonic regulations and maintain stable electrical infrastructure in commercial buildings and industrial facilities.

Typical Applications

• Commercial building HVAC systems.
• Air handling units and ventilation systems.
• Cooling towers and chilled water pumps.
• Industrial ventilation and process cooling.
• Hospitals, data centres and infrastructure facilities.

Trusted by HVAC and Automation Engineers

ABB ACH580 HVAC drives are widely trusted by building automation engineers to deliver reliable motor control, improved energy efficiency and reduced harmonic distortion in modern HVAC systems.
