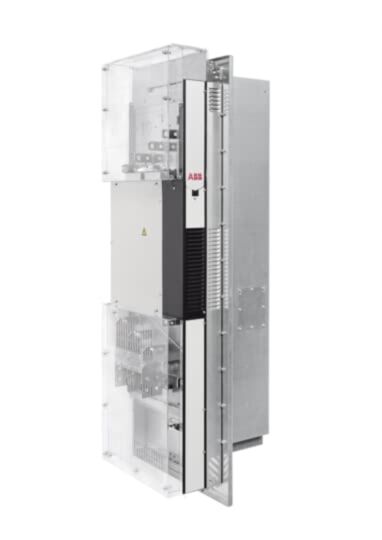

ACS880-04F-880A-5 ABB 630kW Three Phase ABB ACS880 Variable Speed Drive

Why Choose the ABB ACS880-04F-880A-5 Industrial Drive Module?

The ABB 3AXD50000043461, designated ACS880-04F-880A-5, is a high-power industrial AC drive module designed for demanding motor control applications in heavy industry and large-scale automation systems. Part of ABB’s advanced ACS880 all-compatible drive platform, this drive module delivers precise speed and torque control while providing flexible integration into custom-built electrical cabinets.

The ACS880-04F version features a flange-mounted push-through design, allowing efficient thermal management by directing heat outside the cabinet. This configuration helps reduce cooling requirements within control panels while maintaining high reliability and performance in industrial environments.

With a 560 kW rated motor power and 880 A output current, this drive module is designed for large industrial motors used in high-demand applications such as pumps, compressors, conveyors, mills and process machinery.

Key Advantages

• High-power ACS880 industrial drive module for heavy-duty motor control.
• 560 kW motor power capability suitable for large industrial equipment.
• Push-through flange mounting improves cabinet cooling efficiency.
• ABB Direct Torque Control (DTC) for precise speed and torque regulation.
• Flexible integration into custom drive cabinets.
• Designed for continuous industrial operation and long service life.

Key Features

• ACS880 industrial AC drive module.
• Rated motor power: 560 kW.
• Output current: 880 A.
• Input voltage: up to 500 V AC.
• Three-phase motor control.
• Flange-mounted push-through cabinet installation.
• Direct Torque Control (DTC) technology.
• Compatible with a wide range of industrial automation networks.

Technical Specifications

• Manufacturer: ABB
• Series: ACS880 Industrial Drives
• Model: ACS880-04F-880A-5
• Product ID: 3AXD50000043461
• Drive type: AC industrial drive module
• Motor power rating: 560 kW
• Output current: 880 A
• Input voltage: up to 500 V AC
• Number of phases: 3-phase
• Mounting type: Flange-mounted (push-through)
• Enclosure protection: IP20
• Operating altitude: up to 4000 m
• Typical sound level: approx. 75 dB(A)
• Dimensions: approx. 1647 mm × 620 mm × 405 mm
• Approximate weight: 219 kg

High-Power Industrial Motor Control

Industrial drive modules such as the ABB ACS880 series are engineered to control large AC motors with exceptional precision and reliability. These drives are part of ABB’s “all-compatible” drive architecture, designed to support virtually any motor-driven process across a wide range of industries including mining, metals, energy and water treatment.

With advanced control algorithms, flexible connectivity and robust hardware construction, ACS880 drives provide efficient operation and improved process productivity for demanding industrial environments.

Typical Applications

• Large industrial pumps and fan systems.
• Conveyors and heavy material handling equipment.
• Compressors and large mixing equipment.
• Mining and metals processing plants.
• Power generation and energy infrastructure.

Trusted by Industrial Automation Engineers

ABB ACS880 industrial drives are widely trusted across heavy industry for their precision motor control, high power capability and reliable long-term operation in demanding environments.
