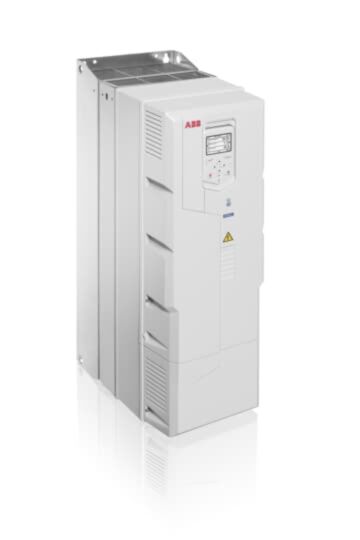

ACH580-31-088A-4 ABB 45kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-31-088A-4
Alt. SKU: 3AXD50000042306
Why Choose the ABB ACS880-01-206A-4 Industrial AC Drive?
The ABB 3AXD50000042306, also identified as the ACS880-01-206A-4, is a powerful industrial variable frequency drive (VFD) designed for demanding motor control applications in heavy industrial automation environments. As part of ABB’s advanced ACS880 industrial drive platform, this drive delivers precise speed and torque control while improving energy efficiency, equipment reliability and process performance.
The ACS880-01 series provides a compact wall-mounted drive solution that integrates essential control functionality, simplifying installation and commissioning within industrial control cabinets. These drives are widely used in sectors such as manufacturing, water treatment, metals processing, mining and material handling where dependable motor control is essential.
With a 110 kW motor power rating and 206 A output current, the ACS880-01-206A-4 provides reliable control for large industrial motors used in pumps, compressors, conveyors and processing equipment.
Key Advantages
- Advanced ACS880 industrial drive technology for demanding automation systems.
- 110 kW rated motor power suitable for heavy industrial equipment.
- ABB Direct Torque Control (DTC) ensures precise and responsive motor control.
- Integrated drive functionality simplifies installation and commissioning.
- Supports a wide range of industrial communication protocols.
- Compact wall-mounted design for efficient control cabinet integration.
Key Features
- ACS880 industrial AC frequency converter.
- Rated motor power: 110 kW.
- Output current: 206 A.
- Input voltage range: 380 – 415 V AC.
- Three-phase motor control.
- Advanced vector control and Direct Torque Control (DTC).
- Expandable I/O and industrial fieldbus communication options.
- Integrated control panel for commissioning and diagnostics.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-206A-4
- Product ID: 3AXD50000042306
- Drive type: AC frequency converter
- Motor power rating: 110 kW
- Output current: 206 A
- Input voltage: 380 – 415 V AC
- Number of phases: 3-phase
- Control method: Direct Torque Control (DTC) / vector control
- Protection class: IP21
- Mounting: Wall-mounted
- Frame size: R7
- Operating temperature: up to 40 °C without derating
Industrial Motor Control and Energy Efficiency
Variable frequency drives play a critical role in modern industrial automation systems by regulating motor speed, torque and energy consumption. Industrial drives such as the ABB ACS880 series allow operators to optimise machine performance while reducing mechanical stress and operating costs.
With powerful control algorithms, flexible connectivity and robust hardware design, ACS880 drives provide reliable motor control for demanding industrial applications where precision and efficiency are essential.
Typical Applications
- Industrial pumps and fan systems.
- Conveyor and material handling equipment.
- Compressors and mixers.
- Water and wastewater treatment facilities.
- Manufacturing and process automation plants.
Frequently Asked Questions
What is the ABB 3AXD50000042306 used for?
This industrial AC drive is used to control the speed and torque of three-phase motors in automation and process control systems.
What motor power can this drive control?
The ACS880-01-206A-4 is rated for motors up to approximately 110 kW.
What supply voltage does the drive require?
The drive operates from a three-phase 380–415 V AC power supply.
Is this drive suitable for heavy industrial environments?
Yes. The ACS880 industrial drive platform is designed for demanding applications across manufacturing, mining, water treatment and process industries.
How is the drive installed?
The ACS880-01 version is designed for wall-mounted installation within electrical cabinets or plant control rooms.
Trusted by Industrial Automation Engineers
ABB ACS880 industrial drives are widely trusted by engineers and system integrators for reliable motor control, energy efficiency and long-term performance in demanding industrial environments.
| Manufacturer Part Number | ACH580-31-088A-4 |
|---|---|
| Barcode | 6438177456209 |
| Packed Quantity | 1 |
| Height | 771mm |
| Width | 252mm |
| Depth | 392mm |
| HS Code | 85044086 |
| Amperage | 88A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 45kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000042306 |
