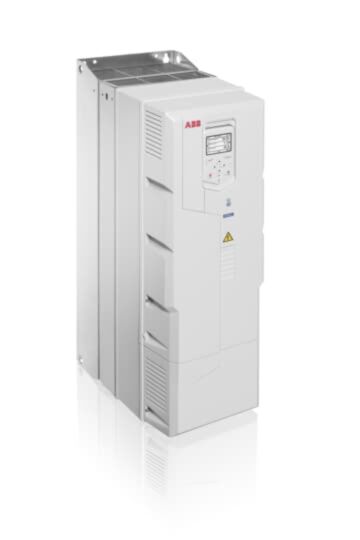

ACH580-31-046A-4 ABB 22kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-31-046A-4 Ultra-Low Harmonic HVAC Drive?

The ABB ACH580-31-046A-4 (Product ID: 3AXD50000042305) is an advanced AC variable frequency drive (VFD) designed specifically for heating, ventilation and air-conditioning applications where both energy efficiency and power quality are critical. As part of the specialised ABB ACH580 ultra-low harmonic HVAC drive series, this model delivers precise motor control while significantly reducing harmonic distortion in electrical networks.

Unlike conventional drives, the ACH580-31 integrates an active supply unit and low harmonic line filter within the drive itself. This design achieves less than 3% total harmonic distortion (THDi), helping installations comply with power quality standards without requiring external harmonic filters or complex transformer arrangements. :contentReference[oaicite:0]{index=0}

The drive provides a rated motor output power of 22 kW and a nominal output current of 45 A, operating from a three-phase 380–480 V AC supply. Its wall-mounted industrial design with integrated HVAC functionality makes it ideal for controlling fans, pumps, air-handling units and chiller systems in large commercial and industrial buildings. :contentReference[oaicite:1]{index=1}

Key Advantages

• Ultra-low harmonic HVAC variable frequency drive designed for high power quality installations.
• 22 kW motor power capability suitable for large HVAC equipment.
• Less than 3% harmonic distortion reduces interference with other electrical equipment.
• No need for external harmonic filters or multi-pulse transformers.
• Integrated HVAC control features simplify system design.
• Reliable performance for continuous building services operation.

Key Features

• ABB ACH580 ultra-low harmonic HVAC drive platform.
• 22 kW rated motor output power.
• 45 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated active front-end technology for ultra-low harmonics.
• Built-in line filter and power factor correction.
• Dedicated HVAC control macros for pumps and fans.
• Assistant control panel for easy commissioning.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 Ultra-Low Harmonic Drives
• Model: ACH580-31-046A-4
• Product ID: 3AXD50000042305
• Product type: HVAC ultra-low harmonic AC drive
• Rated output power: 22 kW
• Rated output current: 45 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 48–63 Hz
• Harmonic performance: <3% THDi
• Protection rating: IP21
• Frame size: R6
• Mounting type: Wall mounted
• Dimensions (H × W × D): approx. 771 × 252 × 392 mm
• Weight: approx. 61 kg

Efficient Motor Control with Superior Power Quality

Variable frequency drives regulate motor speed by adjusting output voltage and frequency. In HVAC installations this allows pumps and fans to operate only at the required speed, reducing energy consumption while improving system stability and equipment lifespan.

The ACH580-31 series integrates ultra-low harmonic technology to minimise distortion in electrical networks, making it especially suitable for sensitive facilities such as hospitals, data centres and high-performance commercial buildings where electrical power quality must remain stable. :contentReference[oaicite:2]{index=2}

Typical Applications

• Air-handling units and large ventilation systems.
• Cooling tower fans and building ventilation equipment.
• HVAC pumps and chilled water circulation systems.
• Chiller plants and refrigeration systems.
• Data centre and hospital climate control systems.
• Commercial and industrial building automation systems.

Trusted by HVAC Engineers Worldwide

ABB ACH580 ultra-low harmonic drives are trusted by engineers worldwide to deliver efficient motor control while maintaining excellent electrical power quality in modern building automation systems.
