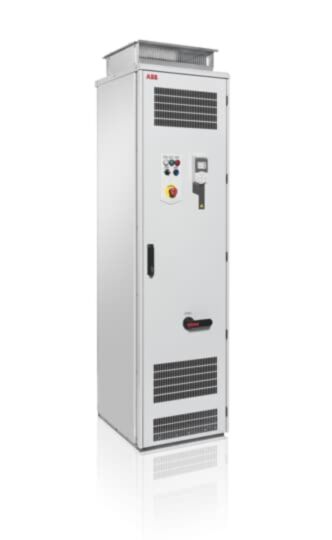

ACS580-07-0725A-4 ABB 400kW Three Phase ABB ACS580 Variable Speed Drive
MPN: ACS580-07-0725A-4
Alt. SKU: 3AXD50000041431
Why Choose the ABB ACS880-01-206A-4 Industrial Drive?
The ABB 3AXD50000041431 corresponds to the ACS880-01-206A-4 industrial variable speed drive, part of ABB’s advanced ACS880 all-compatible drive platform. Designed for demanding industrial automation environments, this drive delivers precise motor control, high reliability and energy-efficient performance for a wide range of heavy-duty applications.
Delivering approximately 110 kW rated motor power with a 206 A output current, the drive operates from a 380–480 V three-phase supply. Its robust industrial design and advanced control capabilities make it ideal for pumps, compressors, conveyors and process machinery requiring accurate torque and speed regulation.
The ACS880 platform incorporates ABB’s renowned Direct Torque Control (DTC) technology, enabling extremely fast torque response and precise motor control without requiring encoder feedback in many applications. This ensures efficient operation, smooth motor performance and reliable control even in demanding industrial environments.
Key Advantages
- Reliable 110 kW industrial AC drive for demanding applications.
- 206 A continuous output current for stable motor control.
- Advanced Direct Torque Control (DTC) motor control technology.
- Designed for 380–480 V three-phase industrial power systems.
- Robust construction suitable for continuous industrial operation.
- Part of ABB’s scalable ACS880 industrial drive platform.
Key Features
- ACS880-01 industrial variable speed drive.
- 110 kW rated motor power.
- 206 A continuous output current.
- 380–480 V AC three-phase input supply.
- Precise motor control using DTC technology.
- Supports induction, permanent magnet and synchronous reluctance motors.
- Compact wall-mounted industrial drive design.
- Flexible communication and automation integration.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-206A-4
- Product ID: 3AXD50000041431
- Drive type: Low voltage AC variable frequency drive
- Rated motor power (IEC): 110 kW
- Rated output current: 206 A
- Input voltage: 380–480 V AC
- Input phases: Three-phase
- Supply frequency: 50 / 60 Hz
- Control method: Direct Torque Control (DTC)
- Typical enclosure class: IP21 (options available)
- Mounting type: Wall mounted
- Typical applications: Pumps, compressors, conveyors and heavy industrial machinery
Industrial Motor Control Performance
Industrial automation systems require dependable motor control capable of maintaining stable performance under varying load conditions. ABB ACS880 drives combine advanced control algorithms with durable industrial hardware to deliver reliable performance across demanding industrial processes.
The ACS880 platform supports multiple motor technologies including induction motors, permanent magnet motors and synchronous reluctance motors, allowing engineers to optimise energy efficiency and performance across diverse industrial automation applications.
Typical Applications
- Industrial pump and compressor systems.
- Material handling and conveyor equipment.
- Manufacturing and processing machinery.
- Water and wastewater treatment plants.
- Heavy industrial automation systems.
Frequently Asked Questions
What is the ABB 3AXD50000041431 used for?
This product is an ACS880 industrial variable frequency drive used to control AC motors in demanding industrial automation and process applications.
What motor power can this drive control?
The drive supports motors up to approximately 110 kW with a rated output current of 206 A.
What voltage supply does this drive require?
The ACS880-01-206A-4 operates from a 380–480 V three-phase AC power supply.
What is Direct Torque Control?
Direct Torque Control (DTC) is ABB’s advanced motor control technology that provides extremely fast torque response and precise motor performance.
Where are ACS880 drives typically installed?
They are widely used in industrial environments such as manufacturing plants, water treatment facilities, mining operations and heavy machinery installations.
Trusted by Industrial Automation Engineers
ABB ACS880 industrial drives are trusted worldwide by automation engineers to deliver precise motor control, high reliability and efficient operation in demanding industrial environments.
| Manufacturer Part Number | ACS580-07-0725A-4 |
|---|---|
| Packed Quantity | 1 |
| Height | 2145mm |
| Width | 830mm |
| Depth | 698mm |
| Amperage | 725A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 400kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACS580 |
| Manufacturer | ABB |
| Country of Manufacture | Estonia |
| Alternative Product SKU | 3AXD50000041431 |
