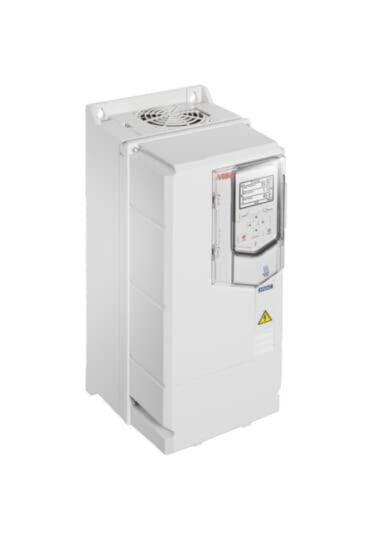

ACH580-01-046A-4+B056 ABB 22kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-046A-4+B056 HVAC Drive?

The ABB ACH580-01-046A-4+B056 (Product ID: 3AXD50000039014) is a robust AC variable frequency drive (VFD) engineered specifically for heating, ventilation and air-conditioning systems. Part of the advanced ABB ACH580 HVAC drive series, it provides efficient and reliable motor control for pumps, fans, compressors and air-handling units used in commercial and industrial buildings.

The ACH580 drive platform includes HVAC-specific functionality built directly into the drive. Integrated application macros, intuitive commissioning assistants and built-in communication capabilities simplify installation and allow seamless integration with building automation systems and PLC-controlled environments. These built-in functions help reduce installation time and optimise HVAC system efficiency. :contentReference[oaicite:0]{index=0}

This wall-mounted drive provides a rated motor output power of 22 kW and a nominal output current of 45 A. Operating from a three-phase 380–480 V AC supply, it is designed for reliable operation in demanding plant-room environments where energy efficiency and consistent motor control are critical. :contentReference[oaicite:1]{index=1}

Key Advantages

• Dedicated HVAC variable frequency drive optimised for building automation systems.
• 22 kW motor power capability suitable for pumps, fans and air-handling equipment.
• Three-phase 380–480 V AC input supply compatible with global commercial power systems.
• Integrated HVAC control functions reduce the need for external controllers.
• Energy-efficient motor operation lowers HVAC system operating costs.
• Reliable construction designed for continuous building services operation.

Key Features

• ABB ACH580 HVAC drive platform.
• 22 kW rated motor output power.
• 45 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated HVAC application control macros.
• Built-in fieldbus communication including Modbus and BACnet options.
• Assistant control panel for simple commissioning.
• Wall-mounted design with IP55 protection for demanding environments.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-046A-4+B056
• Product ID: 3AXD50000039014
• Product type: HVAC variable frequency drive
• Rated output power: 22 kW
• Rated output current: 45 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output frequency range: up to 500 Hz
• Protection rating: IP55
• Mounting type: Wall mounted
• Frame size: R3
• Typical dimensions (H × W × D): approx. 490 × 206 × 237 mm
• Typical weight: approx. 13 kg

Efficient Motor Control for HVAC Systems

Variable frequency drives regulate motor speed by adjusting output voltage and frequency. In HVAC systems this allows pumps and fans to operate only at the speed required, significantly reducing energy consumption while improving temperature control and system reliability in large buildings.

The ACH580 series includes integrated pump and fan control functions designed to optimise HVAC operation. These built-in features help maintain stable airflow, efficient cooling and reliable climate control across commercial facilities, data centres and industrial plants. :contentReference[oaicite:2]{index=2}

Typical Applications

• HVAC pumps and chilled water circulation systems.
• Air-handling units and ventilation equipment.
• Cooling tower fans and building ventilation systems.
• Refrigeration and chiller plant systems.
• Commercial building climate control equipment.
• Industrial ventilation and air movement systems.

Trusted by HVAC Engineers Worldwide

ABB ACH580 HVAC drives are trusted by engineers and facility managers worldwide for delivering reliable motor control, energy efficiency and simplified commissioning in building automation systems.
