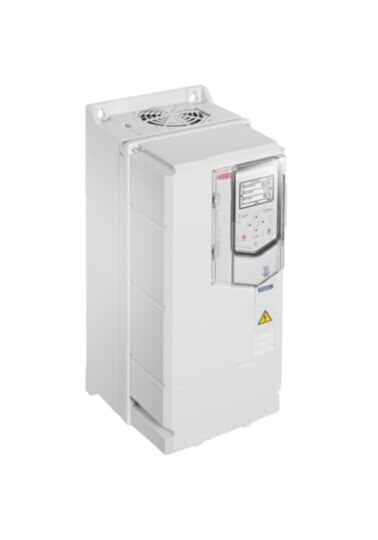

ACH580-01-039A-4+B056 ABB 18.5kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACS580-01-062A-4 General Purpose Drive?

The ABB ACS580-01-062A-4 (Product ID: 3AXD50000039013) is a high-performance AC variable frequency drive (VFD) designed for reliable speed and torque control of three-phase motors in industrial automation and process applications. As part of the proven ABB ACS580 general purpose drive series, it delivers dependable performance, simplified commissioning and energy-efficient motor operation.

The ACS580 series is engineered to simplify drive installation and operation by integrating key functionality as standard. Built-in control features, intuitive configuration tools and flexible communication options make the drive easy to integrate into modern industrial automation systems.

With a rated motor output power of approximately 30 kW and a nominal output current of 62 A, the ACS580-01-062A-4 operates from a three-phase 380–480 V AC supply. Its robust wall-mounted design makes it suitable for installation inside control cabinets or electrical rooms in manufacturing and process industries.

Key Advantages

• Reliable general purpose variable frequency drive for industrial automation.
• 30 kW motor power capability suitable for demanding machinery.
• Three-phase 380–480 V AC input supply for industrial power systems.
• Integrated functionality simplifies installation and commissioning.
• Energy-efficient motor control improves overall process performance.
• Robust construction designed for continuous industrial operation.

Key Features

• ABB ACS580 general purpose drive series.
• 30 kW rated output power.
• 62 A rated output current.
• Three-phase 380–480 V AC input voltage.
• Wall-mounted drive with IP21 enclosure.
• Integrated control panel with commissioning assistants.
• Built-in energy optimisation functions.
• Supports multiple industrial communication protocols.

Technical Specifications

• Manufacturer: ABB
• Series: ACS580 General Purpose Drives
• Model: ACS580-01-062A-4
• Product ID: 3AXD50000039013
• Product type: AC variable frequency drive
• Rated output power: 30 kW
• Rated output current: 62 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Output frequency range: up to 500 Hz
• Protection rating: IP21
• Mounting type: Wall / panel mounting
• Frame size: R4
• Dimensions (H × W × D): approx. 600 × 250 × 230 mm
• Weight: approx. 18 kg

Efficient Motor Control for Industrial Processes

Variable frequency drives regulate motor speed by adjusting output voltage and frequency supplied to the motor. This allows machinery to operate at optimal speed, reducing mechanical stress and improving overall energy efficiency.

The ACS580 drive range is widely used by automation engineers and OEM machine builders because it combines reliability, ease of use and flexible integration with modern industrial control systems.

Typical Applications

• Industrial pumps and fluid handling systems.
• Material handling and conveyor equipment.
• Ventilation systems and industrial fans.
• Compressors and processing machinery.
• Manufacturing automation systems.
• General industrial motor control.

Trusted by Industrial Automation Professionals

ABB ACS580 drives are trusted worldwide by engineers and OEM machine builders to deliver reliable motor control, improved energy efficiency and seamless integration into industrial automation systems.
