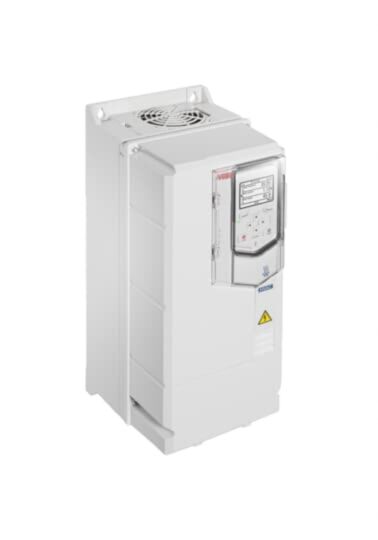

ACH580-01-033A-4+B056 ABB 15kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-033A-4+B056 HVAC Drive?

The ABB ACH580-01-033A-4+B056 (Product ID 3AXD50000039012) is a dedicated AC variable frequency drive (VFD) designed for heating, ventilation and air-conditioning (HVAC) applications. Part of the advanced ABB ACH580 HVAC drive family, it provides reliable speed control, improved energy efficiency and simplified commissioning for building automation systems.

The ACH580 series integrates key HVAC functionality directly into the drive, reducing the need for additional controllers or complex configuration. Its intuitive control interface, built-in safety features and automation connectivity allow engineers to deploy reliable motor control solutions for commercial buildings and industrial facilities.

With a rated output power of 15 kW and a nominal output current of 32 A, the ACH580-01-033A-4+B056 operates from a three-phase 380–480 V AC supply. This wall-mounted drive is ideal for controlling HVAC equipment such as fans, pumps and air-handling units in energy-efficient climate control systems. :contentReference[oaicite:0]{index=0}

Key Advantages

• Specialised HVAC variable frequency drive designed for building automation systems.
• 15 kW motor power rating suitable for ventilation, pumping and air-handling equipment.
• Three-phase 380–480 V AC supply compatible with commercial and industrial electrical systems.
• Integrated HVAC control features simplify commissioning.
• Energy optimisation functions reduce operating costs.
• Compact wall-mounted enclosure for easy installation.

Key Features

• ABB ACH580 HVAC drive series.
• 15 kW rated output power.
• 32 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated harmonic mitigation and EMC filtering.
• Built-in Safe Torque Off (STO) safety function.
• Dedicated HVAC control interface and application software.
• Communication support including Modbus and building automation protocols.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-033A-4+B056
• Product ID: 3AXD50000039012
• Product type: HVAC AC variable frequency drive
• Rated output power: 15 kW
• Rated output current: 32 A
• Input voltage: 380–480 V AC
• Input phases: Three phase
• Protection rating: IP21
• Mounting type: Wall mounted
• Typical applications: HVAC fans, pumps and air-handling units

Optimised Motor Control for HVAC Systems

Variable frequency drives regulate motor speed by adjusting the voltage and frequency supplied to the motor. In HVAC applications this allows pumps and fans to operate precisely at the required speed, significantly improving energy efficiency and reducing mechanical wear.

The ACH580 drive series is specifically designed for building automation and climate control systems, providing dependable motor control for ventilation equipment, chillers, cooling towers and water circulation systems in commercial and industrial facilities.

Typical Applications

• Air-handling units and ventilation systems.
• HVAC fans and exhaust systems.
• Water circulation and booster pumps.
• Cooling towers and chillers.
• Building automation and energy management systems.
• Commercial buildings, hospitals and industrial facilities.

Trusted by Building Automation Engineers

ABB ACH580 drives are widely used in commercial buildings and industrial facilities to deliver efficient HVAC motor control, energy savings and reliable climate system operation.
