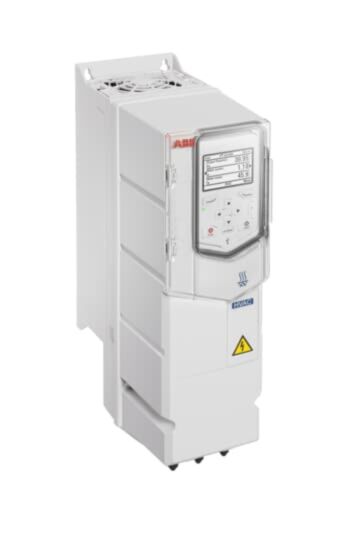

ACH580-01-04A1-4+B056 ABB 1.5kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-04A1-4+B056 HVAC Drive?

The ABB ACH580-01-04A1-4+B056 (Product ID 3AXD50000039000) is a highly efficient AC variable frequency drive (VFD) designed specifically for heating, ventilation and air conditioning (HVAC) systems. Part of the advanced ABB ACH580 HVAC drive series, it provides intelligent motor control for pumps, fans and compressors used in modern building automation systems.

The ACH580 series is engineered to simplify installation, commissioning and operation. Built-in HVAC functions and intuitive controls allow engineers and facility managers to optimise system performance while reducing energy consumption and operating costs.

With a rated output power of 1.5 kW, nominal output current of 4 A and a three-phase 380–480 V AC supply, the ACH580-01-04A1-4+B056 is well suited for HVAC equipment including ventilation fans, chilled water pumps and air handling units. The drive features a robust IP55 wall-mounted enclosure designed for reliable operation in demanding industrial and commercial environments.

Key Advantages

• Purpose-built HVAC variable frequency drive for pumps, fans and compressors.
• 1.5 kW motor power rating ideal for building automation systems.
• Three-phase 380–480 V AC input compatible with commercial and industrial power networks.
• IP55 enclosure suitable for demanding plant room environments.
• Integrated HVAC application functions reduce engineering and commissioning time.
• Energy optimisation features help reduce operational costs.

Key Features

• ABB ACH580 HVAC drive series.
• 1.5 kW rated output power.
• 4 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated control panel with HVAC-specific menus.
• Built-in pump and fan control functions.
• Support for multiple industrial communication protocols.
• Optional Bluetooth commissioning and monitoring capability.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-04A1-4+B056
• Product ID: 3AXD50000039000
• Product type: HVAC variable frequency drive
• Rated output power: 1.5 kW
• Rated output current: 4 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Protection rating: IP55
• Mounting type: Wall mounted
• Frame size: R1
• Dimensions (H × W × D): approx. 403 × 128 × 233 mm
• Weight: approx. 4.8 kg
• Operating temperature: −15 to +40 °C

Optimised Motor Control for HVAC Systems

Variable frequency drives regulate motor speed by adjusting the voltage and frequency supplied to the motor. This allows HVAC systems to operate more efficiently, matching airflow and water circulation to real-time demand while reducing energy consumption.

The ABB ACH580 drive family is designed for building automation engineers and HVAC contractors. With integrated application functions, advanced energy monitoring and simplified commissioning tools, the ACH580 enables reliable and efficient control of HVAC equipment across commercial and industrial facilities.

Typical Applications

• Air handling units and ventilation fans.
• Heating and chilled water circulation pumps.
• Cooling tower fan control.
• Building automation systems.
• Commercial HVAC plant rooms.
• Industrial ventilation and environmental control systems.

Trusted by Building Automation Engineers

ABB ACH580 HVAC drives are trusted worldwide by building automation engineers and facility managers to deliver reliable motor control, improved energy efficiency and simplified HVAC system integration.
