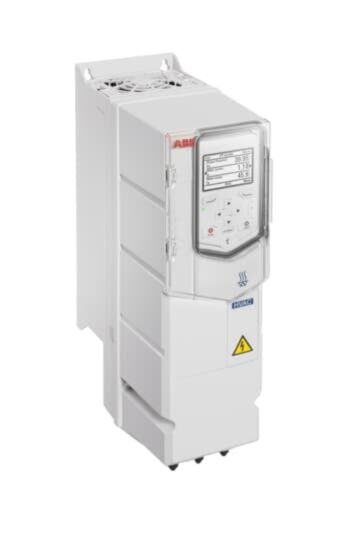

ACH580-01-02A7-4+B056 ABB 0.75kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-02A7-4 HVAC Drive?

The ABB ACH580-01-02A7-4 (Product ID 3AXD50000038998) is a high-efficiency AC variable frequency drive (VFD) engineered specifically for heating, ventilation and air conditioning systems. Part of the advanced ABB ACH580 HVAC drive family, it delivers reliable motor control, simplified commissioning and optimised energy performance for modern building automation systems.

Designed for HVAC professionals and building automation engineers, the ACH580 integrates essential HVAC control functions directly into the drive. This reduces installation complexity and enables seamless integration with building management systems, PLC-based control networks and industrial automation platforms.

With a rated output power of 0.75 kW and a nominal output current of 2.6 A, the ACH580-01-02A7-4 operates from a three-phase 380–480 V AC supply. The drive features a wall-mounted IP55 enclosure for operation in demanding environments where protection from dust and water ingress is required. :contentReference[oaicite:0]{index=0}

Key Advantages

• Dedicated HVAC variable frequency drive designed for building automation.
• 0.75 kW motor power rating suitable for fans, pumps and compressors.
• Three-phase 380–480 V AC input supply compatible with commercial HVAC systems.
• IP55 protection for installation in demanding environments.
• Integrated HVAC control features reduce commissioning time.
• Energy-efficient motor control improves overall system performance.

Key Features

• ABB ACH580 HVAC drive series.
• 0.75 kW rated output power.
• 2.6 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated HVAC application control functions.
• Communication support including Modbus, BACnet and industrial networks.
• Integrated control panel and PC connection interface.
• Compact IP55 wall-mounted enclosure for harsh environments.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-02A7-4
• Product ID: 3AXD50000038998
• Product type: HVAC variable frequency drive
• Rated output power: 0.75 kW
• Rated current: 2.6 A
• Input voltage: 380–480 V AC
• Input phase: 3-phase
• Output frequency: up to 500 Hz
• Protection rating: IP55
• Frame size: R1
• Mounting type: Wall mounted
• Dimensions (H × W × D): approx. 403 × 128 × 233 mm

Optimised Motor Control for HVAC Systems

Variable frequency drives regulate motor speed by adjusting the frequency and voltage supplied to the motor. This allows HVAC equipment to maintain precise airflow, pressure and temperature control while reducing energy consumption and mechanical wear.

The ACH580 drive series integrates HVAC-specific control logic and communication interfaces, enabling seamless integration with building management systems and modern automation infrastructure used in commercial buildings and industrial facilities.

Typical Applications

• HVAC ventilation fans and air handling units.
• Water circulation pumps and booster systems.
• Cooling towers and refrigeration compressors.
• Commercial building climate control systems.
• Industrial ventilation and air treatment systems.
• Smart building automation installations.

Trusted by Building Automation Engineers

ABB ACH580 HVAC drives are trusted by engineers worldwide for reliable climate control, improved energy efficiency and seamless integration into modern building automation systems.
