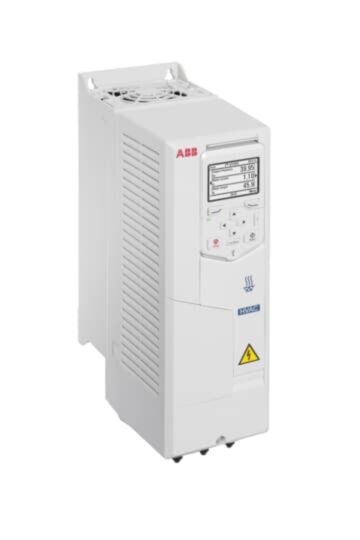

ACH580-01-12A7-4 ABB 5.5kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-12A7-4 HVAC Drive?

The ABB ACH580-01-12A7-4 is a reliable and energy-efficient AC variable frequency drive (VFD) designed specifically for HVAC motor control applications. As part of the advanced ABB ACH580 HVAC drive series, it provides precise speed and torque control for fans, pumps, compressors, air handling units and building services equipment.

This wall-mounted HVAC drive is engineered to simplify installation, commissioning and daily operation. The ACH580 range includes dedicated HVAC functions, intuitive control features and built-in safety functionality, making it suitable for commercial buildings, industrial facilities and mission-critical ventilation or cooling systems.

With a rated output power of 5.5 kW, a nominal output current of 12.6 A and a three-phase 380–480 V AC supply, the ACH580-01-12A7-4 is ideal for efficient control of HVAC motors in ventilation, pumping, heating and cooling applications.

Key Advantages

• Dedicated HVAC variable frequency drive for building services applications.
• 5.5 kW motor power rating suitable for fans, pumps and compressors.
• Three-phase 380–480 V AC input compatible with industrial and commercial power systems.
• Wall-mounted IP21 enclosure for straightforward installation.
• Integrated Safe Torque Off (STO) safety function.
• Built-in HVAC features help reduce commissioning time.
• Improves energy efficiency, comfort control and system reliability.

Key Features

• ABB ACH580 HVAC drive series.
• 5.5 kW rated output power.
• 12.6 A nominal output current.
• Three-phase 380–480 V AC input supply.
• 7.5 hp UL power rating at 480 V.
• Wall-mounted ACH580-01 drive format.
• Integrated Safe Torque Off (STO) functionality.
• HVAC-specific control functions for fans, pumps and air handling units.
• Built-in energy optimisation features.
• IP21 enclosure protection.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-12A7-4
• Product ID: 3AXD50000038987
• EAN: 6438177459477
• Product type: HVAC variable frequency drive
• Rated output power: 5.5 kW
• Rated output current: 12.6 A
• UL power rating: 7.5 hp
• UL output current: 11.0 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP21
• Mounting type: Wall mounting
• Frame size: R1
• Dimensions (H × W × D): approx. 373 × 125 × 223 mm
• Weight: approx. 5.7 kg

Efficient Control for HVAC Systems

Variable frequency drives such as the ABB ACH580 regulate motor speed by adjusting the voltage and frequency supplied to the motor. This helps HVAC systems respond accurately to demand while reducing energy consumption, lowering mechanical stress and improving overall building comfort.

The ACH580 series is designed for HVAC professionals, panel builders and building automation engineers. Its built-in application functions, safety features and communication capabilities make it a dependable solution for modern heating, ventilation and air conditioning systems.

Typical Applications

• Air handling units (AHUs).
• HVAC fans and ventilation systems.
• Chilled water and heating pumps.
• Commercial and industrial compressors.
• Cooling towers and circulation systems.
• Hospitals, hotels, offices and public buildings.
• Data centre cooling and building management systems.

Trusted by HVAC Professionals Worldwide

ABB ACH580 HVAC drives are widely used by building services engineers, HVAC contractors and facility managers to deliver reliable motor control, reduced energy consumption and improved comfort across modern buildings.
