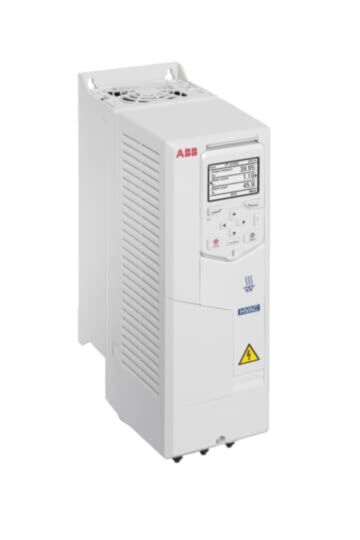

ACH580-01-09A5-4 ABB 4kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-09A5-4 HVAC Drive?

The ABB ACH580-01-09A5-4 is a specialised HVAC variable frequency drive (VFD) designed to optimise the performance of heating, ventilation and air conditioning systems. As part of ABB’s dedicated ACH580 HVAC drive platform, this drive delivers reliable motor control, improved energy efficiency and simplified commissioning for building automation systems.

The ACH580 series is engineered specifically for HVAC applications, integrating built-in features for controlling fans, pumps, compressors and air-handling units. Its intuitive user interface and HVAC-specific software tools allow rapid installation and configuration, helping building operators maintain efficient climate control while reducing energy consumption and operational costs.

With a 4 kW motor power rating and 9.4 A output current, the ACH580-01-09A5-4 provides reliable motor control for ventilation systems, chilled water pumps and other building service equipment used in commercial and industrial facilities.

Key Advantages

• Designed specifically for HVAC systems and building automation.
• 4 kW rated motor power suitable for ventilation and pump applications.
• Integrated control features for fans, pumps and compressors.
• Built-in communication protocols for building automation systems.
• Energy optimisation features reduce operational costs.
• Compact wall-mounted design for simple installation.

Key Features

• ACH580 HVAC AC frequency converter.
• Rated motor power: 4 kW.
• Output current: 9.4 A.
• Input voltage: 3-phase 380 – 480 V AC.
• Vector and scalar motor control.
• Integrated EMC filter and DC choke.
• Built-in BACnet MS/TP, Modbus RTU and N2 communication.
• HVAC-specific control panel and configuration tools.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-09A5-4
• Drive type: AC frequency converter for HVAC
• Motor power rating: 4 kW
• Output current: 9.4 A
• Input voltage: 380 – 480 V AC
• Number of phases: 3-phase
• Control method: Vector control / scalar control
• Protection class: IP21
• Mounting: Wall-mounted
• Frame size: R1
• Operating temperature: −15 °C to +50 °C

Optimised Control for HVAC Systems

HVAC systems require precise motor control to maintain stable airflow, temperature and pressure conditions within buildings. Drives such as the ABB ACH580 series regulate fan and pump speeds based on demand, improving efficiency and reducing mechanical wear while ensuring consistent indoor climate conditions.

The ACH580 platform integrates HVAC-specific software functions, built-in communication protocols and intuitive commissioning tools, making it ideal for integration with modern building management systems.

Typical Applications

• Air-handling units and ventilation systems.
• Heating and chilled water circulation pumps.
• Cooling towers and condenser fans.
• Commercial building HVAC systems.
• Hospitals, data centres and industrial facilities.

Trusted by HVAC Engineers Worldwide

ABB ACH580 drives are widely trusted by HVAC engineers and building automation specialists for efficient climate control and reliable operation in commercial and industrial buildings.
