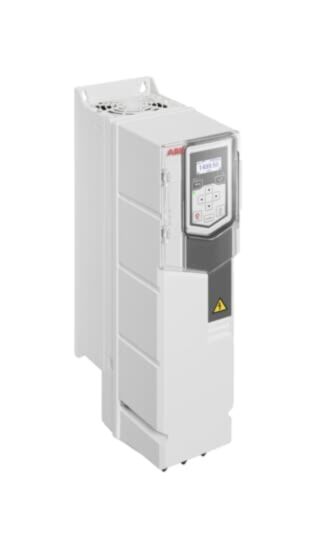

ACS580-01-046A-4+B056 ABB 22kW Three Phase ABB ACS580 Variable Speed Drive

Why Choose the ABB ACS580-01-061A-4 General Purpose Drive?

The ABB ACS580-01-061A-4 (Product ID: 3AXD50000038980) is a robust AC variable frequency drive (VFD) engineered for reliable motor control across a wide range of industrial applications. As part of the advanced ABB ACS580 general purpose drive series, it delivers dependable performance, simplified commissioning and integrated functionality that reduces installation complexity.

ACS580 drives are designed to make motor control straightforward and efficient. Built-in assistants and application macros help engineers configure the drive quickly, while integrated safety and energy optimisation functions improve system reliability and reduce operational costs in industrial automation environments.

This drive provides a rated motor output power of 30 kW and a nominal output current of 61 A. Operating from a three-phase 380–480 V AC supply, the ACS580-01-061A-4 is ideal for controlling motors used in pumps, conveyors, fans and processing machinery across a wide variety of industrial sectors.

Key Advantages

• Versatile general purpose variable frequency drive.
• 30 kW motor power capability suitable for industrial automation systems.
• Three-phase 380–480 V AC input supply compatible with global industrial power networks.
• Integrated features reduce the need for additional external components.
• Simple configuration and commissioning using built-in assistants.
• Reliable performance designed for continuous industrial operation.

Key Features

• ABB ACS580 general purpose drive platform.
• 30 kW rated motor output power.
• 61 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated Safe Torque Off (STO) safety function.
• Assistant control panel and intuitive configuration tools.
• Support for industrial communication protocols including Modbus, EtherNet/IP and PROFINET.
• Wall-mounted industrial design for simple installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACS580 General Purpose Drives
• Model: ACS580-01-061A-4
• Product ID: 3AXD50000038980
• Product type: AC variable frequency drive
• Rated output power: 30 kW
• Rated output current: 61 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output frequency range: up to 500 Hz
• Protection rating: IP21
• Mounting type: Wall mounted
• Frame size: R3
• Dimensions (H × W × D): approx. 490 × 203 × 229 mm
• Typical weight: approx. 11.8 kg

Efficient Motor Control for Industrial Processes

Variable frequency drives regulate motor speed by adjusting the voltage and frequency supplied to the motor. This allows equipment to operate more efficiently, improving process control while reducing energy consumption and mechanical wear on motors and driven equipment.

The ACS580 drive series is designed for use in industries such as manufacturing, water treatment, agriculture, material handling and food processing where dependable motor control and energy efficiency are essential.

Typical Applications

• Industrial pumps and fluid handling systems.
• Conveyor and material handling equipment.
• Industrial ventilation and fan systems.
• Mixers and processing machinery.
• Packaging and manufacturing automation.
• General industrial motor control applications.

Trusted by Industrial Engineers Worldwide

ABB ACS580 drives are trusted worldwide for delivering reliable motor control, simplified commissioning and efficient operation across a wide range of industrial applications.
