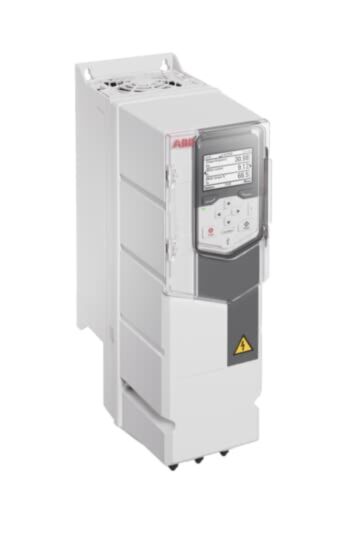

ACS580-01-09A5-4+B056 ABB 4kW Three Phase ABB ACS580 Variable Speed Drive
MPN: ACS580-01-09A5-4+B056
Alt. SKU: 3AXD50000038969
£1,647.60
£1,373.00
Why Choose the ABB ACS880-01-361A-4 Industrial AC Drive?
The ABB 3AXD50000038969, also known as the ACS880-01-361A-4, is a powerful industrial variable frequency drive (VFD) designed to provide precise speed and torque control for three-phase motors in demanding industrial environments. As part of ABB’s advanced ACS880 industrial drive platform, this drive delivers exceptional motor performance, high efficiency and dependable operation for heavy industrial automation systems.
The ACS880-01 series integrates advanced drive functionality into a compact wall-mounted design, simplifying installation and commissioning within industrial control cabinets. These drives are widely used across sectors such as manufacturing, mining, water treatment, metals processing and material handling where reliable motor control and energy optimisation are essential.
With a 200 kW motor power rating and 361 A output current, the ACS880-01-361A-4 is engineered to control large industrial motors used in pumps, compressors, conveyors and heavy process machinery.
Key Advantages
- Advanced ACS880 industrial drive technology for demanding automation systems.
- 200 kW rated motor power suitable for heavy-duty industrial equipment.
- ABB Direct Torque Control (DTC) enables fast and accurate motor response.
- Integrated drive functionality simplifies installation and commissioning.
- Supports multiple industrial communication protocols.
- Compact wall-mounted design for efficient cabinet integration.
Key Features
- ACS880 industrial AC frequency converter.
- Rated motor power: 200 kW.
- Output current: 361 A.
- Input voltage range: 380 – 415 V AC.
- Three-phase motor control.
- Advanced vector control and Direct Torque Control (DTC).
- Expandable I/O and industrial fieldbus communication options.
- Integrated control panel for commissioning and diagnostics.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-361A-4
- Product ID: 3AXD50000038969
- Drive type: AC frequency converter
- Motor power rating: 200 kW
- Output current: 361 A
- Input voltage: 380 – 415 V AC
- Number of phases: 3-phase
- Control method: Direct Torque Control (DTC) / vector control
- Protection class: IP21
- Mounting: Wall-mounted
- Frame size: R8
- Operating temperature: up to 40 °C without derating
Industrial Motor Control and Energy Efficiency
Variable frequency drives play a critical role in modern industrial automation systems by regulating motor speed and torque. Drives such as the ABB ACS880 series allow operators to optimise process performance, reduce energy consumption and minimise mechanical wear on equipment.
With powerful motor control algorithms, flexible connectivity and robust hardware design, ACS880 drives provide dependable performance across a wide range of heavy industrial applications.
Typical Applications
- Industrial pumps and fan systems.
- Conveyor and material handling equipment.
- Compressors and heavy-duty mixers.
- Water and wastewater treatment facilities.
- Manufacturing and process automation plants.
Frequently Asked Questions
What is the ABB 3AXD50000038969 used for?
This industrial AC drive controls the speed and torque of three-phase motors used in automation and process control systems.
What motor power can this drive control?
The ACS880-01-361A-4 is rated for motors up to approximately 200 kW.
What supply voltage does the drive require?
The drive operates from a three-phase 380–415 V AC power supply.
Is this drive suitable for heavy industrial environments?
Yes. The ACS880 industrial drive platform is designed for demanding applications across manufacturing, mining, water treatment and process industries.
How is the drive installed?
The ACS880-01 version is designed for wall-mounted installation within electrical cabinets or plant control rooms.
Trusted by Industrial Automation Engineers
ABB ACS880 industrial drives are widely trusted by engineers and system integrators for reliable motor control, energy efficiency and long-term performance in demanding industrial environments.
| Manufacturer Part Number | ACS580-01-09A5-4+B056 |
|---|---|
| Barcode | 6438177459347 |
| Packed Quantity | 1 |
| Height | 403mm |
| Width | 128mm |
| Depth | 233mm |
| HS Code | 85044085 |
| Amperage | 9.4A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP55 |
| KW Rating | 4kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACS580 |
| Manufacturer | ABB |
| Country of Manufacture | Romania |
| Alternative Product SKU | 3AXD50000038969 |
