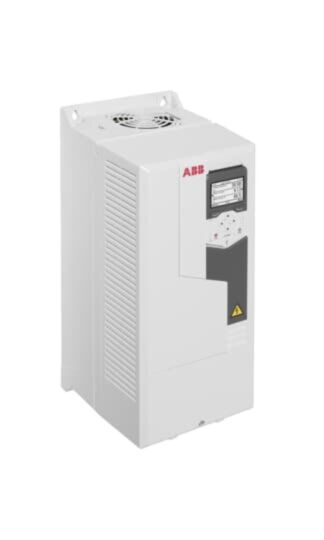

ACS580-01-046A-4 ABB 22kW Three Phase ABB ACS580 Variable Speed Drive

Why Choose the ABB ACS580-01-046A-4 General Purpose Drive?

The ABB ACS580-01-046A-4 (Product ID: 3AXD50000038963) is a reliable AC variable frequency drive (VFD) designed for efficient motor control in a wide range of industrial and commercial applications. As part of the advanced ABB ACS580 general purpose drive series, it delivers dependable performance, simplified commissioning and integrated features that reduce the need for additional hardware.

The ACS580 drive platform is designed to make drive selection, installation and operation straightforward. Built-in application features and assistant tools simplify configuration and allow rapid integration with industrial automation systems, PLCs and process control environments.

This wall-mounted drive provides a rated motor power of 22 kW with a nominal output current of 45 A. It operates from a three-phase 380–480 V AC supply and is suitable for controlling a wide range of motors used in pumps, conveyors, fans and processing equipment across many industrial sectors.

Key Advantages

• Versatile general purpose variable frequency drive.
• 22 kW motor power capability suitable for industrial automation systems.
• Three-phase 380–480 V AC input supply compatible with global industrial power systems.
• Integrated features minimise the need for additional external components.
• Simple setup and commissioning using built-in assistants.
• Reliable performance for continuous industrial operation.

Key Features

• ABB ACS580 general purpose drive platform.
• 22 kW rated motor output power.
• 45 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated Safe Torque Off (STO) safety function.
• Assistant control panel and intuitive configuration tools.
• Support for industrial communication protocols such as Modbus, EtherNet/IP and PROFINET.
• Wall-mounted industrial design for easy installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACS580 General Purpose Drives
• Model: ACS580-01-046A-4
• Product ID: 3AXD50000038963
• Product type: AC variable frequency drive
• Rated output power: 22 kW
• Rated output current: 45 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Output frequency range: up to 500 Hz
• Protection rating: IP21
• Mounting type: Wall mounted
• Frame size: R3
• Dimensions (H × W × D): approx. 490 × 203 × 229 mm
• Typical weight: approx. 11.8 kg

Efficient Motor Control for Industrial Processes

Variable frequency drives control motor speed by adjusting the voltage and frequency supplied to the motor. This improves process efficiency while reducing energy consumption and mechanical stress on motors and driven equipment.

The ACS580 series is designed for versatile use in light industrial sectors such as food processing, plastics manufacturing, material handling and agricultural automation where reliable motor control and energy efficiency are critical.

Typical Applications

• Industrial pumps and fluid handling systems.
• Conveyor and material handling equipment.
• Industrial fans and ventilation systems.
• Mixers, centrifuges and processing machinery.
• Packaging and manufacturing automation.
• General industrial motor control applications.

Trusted by Industrial Engineers Worldwide

ABB ACS580 drives are trusted worldwide for delivering reliable motor control, simplified commissioning and efficient operation across a wide range of industrial applications.
