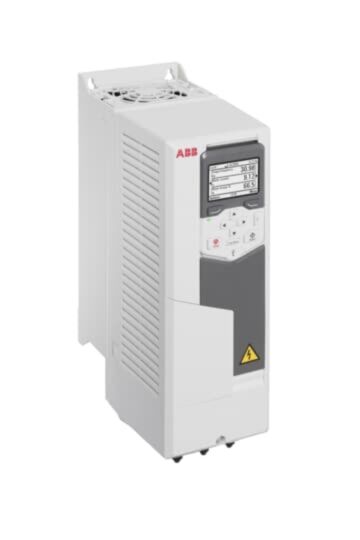

ACS580-01-09A5-4 ABB 4kW Three Phase ABB ACS580 Variable Speed Drive
MPN: ACS580-01-09A5-4
Alt. SKU: 3AXD50000038952
£1,417.20
£1,181.00
Why Choose the ABB ACS880-01-302A-4 Industrial AC Drive?
The ABB 3AXD50000038952, also known as the ACS880-01-302A-4, is a high-performance industrial variable frequency drive (VFD) engineered for precise control of three-phase motors in demanding industrial automation environments. As part of ABB’s advanced ACS880 industrial drive platform, this drive provides exceptional motor control accuracy, improved energy efficiency and robust reliability for critical process applications.
The ACS880-01 series integrates advanced drive functionality within a compact wall-mounted design, allowing easy installation inside industrial control cabinets. These drives are widely deployed across sectors such as manufacturing, water treatment, mining, metals processing and material handling where dependable motor control and operational efficiency are essential.
With a 160 kW motor power rating and 302 A output current, the ACS880-01-302A-4 is designed to control large industrial motors used in pumps, compressors, conveyors and heavy process machinery.
Key Advantages
- Advanced ACS880 industrial drive technology for demanding automation systems.
- 160 kW rated motor power suitable for heavy-duty industrial equipment.
- ABB Direct Torque Control (DTC) ensures fast and precise motor response.
- Integrated drive functionality simplifies installation and commissioning.
- Supports a wide range of industrial communication protocols.
- Compact wall-mounted design for efficient control cabinet integration.
Key Features
- ACS880 industrial AC frequency converter.
- Rated motor power: 160 kW.
- Output current: 302 A.
- Input voltage range: 380 – 415 V AC.
- Three-phase motor control.
- Advanced vector control and Direct Torque Control (DTC).
- Expandable I/O and industrial fieldbus communication options.
- Integrated control panel for commissioning and diagnostics.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-302A-4
- Product ID: 3AXD50000038952
- Drive type: AC frequency converter
- Motor power rating: 160 kW
- Output current: 302 A
- Input voltage: 380 – 415 V AC
- Number of phases: 3-phase
- Control method: Direct Torque Control (DTC) / vector control
- Protection class: IP21
- Mounting: Wall-mounted
- Frame size: R8
- Operating temperature: up to 40 °C without derating
Industrial Motor Control and Energy Efficiency
Variable frequency drives are critical components in modern industrial automation systems. By regulating motor speed and torque, they enable improved process control, reduced energy consumption and lower mechanical stress on equipment. Drives from the ABB ACS880 series provide advanced control algorithms and robust hardware engineered for long-term operation in demanding environments.
With powerful motor control capabilities, flexible connectivity and ABB’s proven reliability, ACS880 drives deliver consistent performance across a wide range of industrial processes.
Typical Applications
- Industrial pumps and fan systems.
- Conveyor and material handling equipment.
- Compressors and heavy-duty mixers.
- Water and wastewater treatment facilities.
- Manufacturing and process automation plants.
Frequently Asked Questions
What is the ABB 3AXD50000038952 used for?
This industrial AC drive controls the speed and torque of three-phase motors used in automation and process control systems.
What motor power can this drive control?
The ACS880-01-302A-4 is rated for motors up to approximately 160 kW.
What supply voltage does the drive require?
The drive operates from a three-phase 380–415 V AC power supply.
Is this drive suitable for heavy industrial environments?
Yes. The ACS880 industrial drive platform is designed for demanding applications across manufacturing, mining, water treatment and process industries.
How is the drive installed?
The ACS880-01 version is designed for wall-mounted installation within electrical cabinets or plant control rooms.
Trusted by Industrial Automation Engineers
ABB ACS880 industrial drives are trusted worldwide by automation engineers and system integrators for reliable motor control, energy efficiency and long-term operational performance.
| Manufacturer Part Number | ACS580-01-09A5-4 |
|---|---|
| Barcode | 6438177459224 |
| Packed Quantity | 1 |
| Height | 373mm |
| Width | 125mm |
| Depth | 223mm |
| HS Code | 85044085 |
| Amperage | 9.4A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 4kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACS580 |
| Manufacturer | ABB |
| Country of Manufacture | Romania |
| Alternative Product SKU | 3AXD50000038952 |
