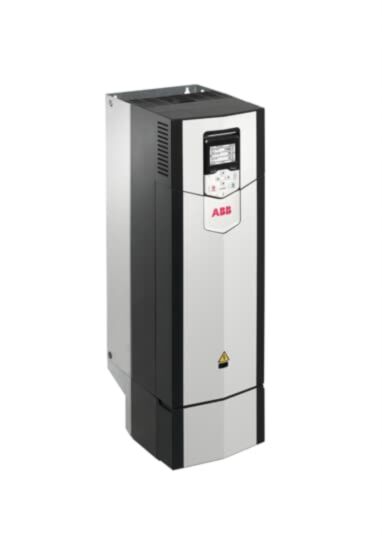

ACS880-01-24A8-7+N7502 ABB 18.5kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-01-24A8-7+N7502
Alt. SKU: 3AXD50000035928
HTML
Why Choose the ABB ACS880-01-24A8-7 Industrial Drive?
The ABB ACS880-01-24A8-7 (Product ID 3AXD50000035928) is a high-performance AC variable frequency drive (VFD) designed for demanding industrial motor control applications. As part of the advanced ABB ACS880 industrial drive series, it provides precise speed and torque control for three-phase motors used in heavy-duty industrial processes and automation systems.
The ACS880 platform is engineered for reliability, flexibility and seamless integration into modern industrial environments. These drives include essential built-in features such as harmonic filtering chokes and support optional modules including communication adapters, functional safety features, external output filters and I/O extension modules for complex automation architectures.
With a rated output power of 18.5 kW and approximately 24 A nominal output current, the ACS880-01-24A8-7 operates from a three-phase 525–690 V AC supply. Its wall-mounted industrial enclosure allows easy installation in electrical cabinets or control rooms while providing reliable and efficient motor control for demanding industrial machinery.
Key Advantages
- High-performance industrial variable frequency drive for heavy-duty applications.
- 18.5 kW motor power capability suitable for industrial machinery.
- Three-phase 525–690 V AC supply compatible with high-voltage industrial networks.
- Integrated harmonic filtering choke improves power quality and reduces disturbances.
- Flexible expansion with communication modules and automation interfaces.
- Designed for reliable operation in demanding industrial environments.
Key Features
- ABB ACS880 industrial drive platform.
- 18.5 kW rated output power.
- Approx. 24 A nominal output current.
- Three-phase 525–690 V AC input supply.
- Integrated harmonic choke for improved electrical performance.
- Advanced diagnostics and monitoring capabilities.
- Support for major industrial communication protocols.
- Wall-mounted enclosure for industrial control cabinets.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-24A8-7
- Product ID: 3AXD50000035928
- Product type: AC variable frequency drive
- Rated output power: 18.5 kW
- Rated output current: approx. 24.8 A
- Heavy duty output power: approx. 15 kW
- Heavy duty current: approx. 20.2 A
- Input voltage: 525–690 V AC
- Input phases: 3-phase
- Frequency: 47.5–63 Hz
- Protection rating: IP21 / NEMA Type 1
- Mounting type: Wall mounted
- Frame size: R5
- Dimensions (H × W × D): approx. 732 × 203 × 274 mm
- Weight: approx. 22.8 kg
Advanced Motor Control for Industrial Automation
Variable frequency drives regulate motor speed by adjusting the output voltage and frequency supplied to the motor. Industrial drives such as the ABB ACS880 enable precise control of machinery, improving process efficiency while reducing mechanical stress and energy consumption.
The ACS880 series is widely used in industries including mining, oil and gas, metals processing, water treatment, marine systems, pulp and paper production and manufacturing. It supports demanding applications such as conveyors, compressors, mixers, cranes, extruders, pumps and industrial processing equipment.
Typical Applications
- Industrial conveyors and material handling systems.
- Pumps, compressors and ventilation equipment.
- Manufacturing and process machinery.
- Water and wastewater treatment plants.
- Mining and heavy industrial automation.
- Industrial production and processing systems.
Frequently Asked Questions
What is the ABB ACS880-01-24A8-7 used for?
This industrial drive controls the speed and torque of three-phase motors used in heavy industrial machinery and automation systems.
What motor power does this drive support?
The drive supports motors with a rated output power of approximately 18.5 kW.
What power supply is required?
The ACS880-01-24A8-7 operates from a three-phase 525–690 V AC power supply.
Where is this drive typically installed?
The drive is usually wall mounted in electrical control cabinets or installed in industrial control rooms.
What industries commonly use ACS880 drives?
Industries such as mining, metals processing, manufacturing and water treatment commonly use ACS880 drives for demanding motor control applications.
Trusted by Industrial Engineers Worldwide
ABB ACS880 industrial drives are trusted globally by automation engineers and system integrators to deliver reliable motor control, energy efficiency and high performance in demanding industrial environments.
| Manufacturer Part Number | ACS880-01-24A8-7+N7502 |
|---|---|
| Packed Quantity | 1 |
| Height | 732mm |
| Width | 203mm |
| Depth | 274mm |
| Amperage | 24.8A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 18.5kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 4 |
| Output Frequency | 500Hz |
| Output Voltage | 690VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 525/690VAC |
| VSD Range | ABB ACS880 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000035928 |
