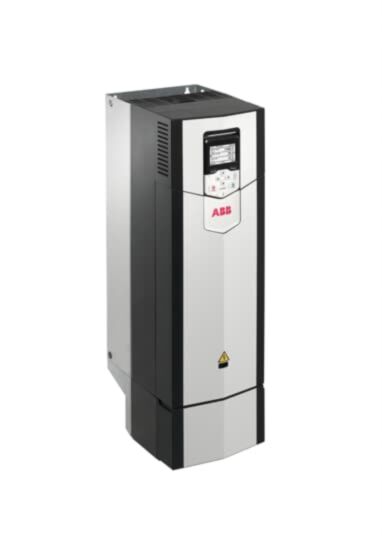

ACS880-01-069A-3+N7502 ABB 30kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-01-069A-3+N7502
Alt. SKU: 3AXD50000035921
Why Choose the ABB ACS880-01-087A-4 Industrial Drive?
The ABB 3AXD50000035921 corresponds to the ACS880-01-087A-4 industrial variable speed drive, part of ABB’s advanced ACS880 all-compatible drive platform. Engineered for demanding industrial automation environments, this drive delivers precise motor control, high reliability and energy-efficient operation for a wide range of applications.
Providing approximately 45 kW rated motor power with a 87 A output current, the drive operates from a 380-480 V three-phase supply. It is well suited for industrial equipment including pumps, conveyors, compressors and process machinery requiring dependable motor control.
The ACS880 series integrates ABB’s advanced Direct Torque Control (DTC) technology, delivering extremely fast torque response and precise motor control without the need for encoder feedback in many applications. This ensures stable operation and excellent performance across demanding industrial processes.
Key Advantages
- Reliable 45 kW industrial AC drive for demanding machinery.
- 87 A continuous output current for heavy motor loads.
- Advanced Direct Torque Control (DTC) motor control technology.
- Designed for 380-480 V three-phase industrial power systems.
- Stable performance in continuous industrial operation.
- Part of ABB’s scalable ACS880 industrial drive platform.
Key Features
- ACS880-01 industrial variable speed drive.
- 45 kW rated motor power.
- 87 A continuous output current.
- 380-480 V AC three-phase supply.
- Precise motor control using DTC technology.
- Supports induction, permanent magnet and synchronous reluctance motors.
- Wall-mounted industrial drive design.
- Flexible communication and automation integration.
Technical Specifications
- Manufacturer: ABB
- Series: ACS880 Industrial Drives
- Model: ACS880-01-087A-4
- Product ID: 3AXD50000035921
- Drive type: Low voltage AC variable frequency drive
- Rated motor power (IEC): 45 kW
- Rated output current: 87 A
- Input voltage: 380-480 V AC
- Input phases: Three-phase
- Supply frequency: 50 / 60 Hz
- Control method: Direct Torque Control (DTC)
- Typical enclosure class: IP21 (options available)
- Mounting type: Wall mounted
- Typical applications: Pumps, compressors, conveyors and industrial machinery
Industrial Motor Control Performance
Industrial processes require reliable motor control solutions capable of handling continuous operation and varying load conditions. ABB ACS880 drives combine advanced control algorithms, robust hardware and flexible configuration tools to deliver stable performance across a wide range of industrial automation systems.
The ACS880 platform supports multiple motor technologies including induction motors, permanent magnet motors and synchronous reluctance motors, allowing engineers to optimise efficiency and performance across diverse industrial applications.
Typical Applications
- Industrial pump and compressor systems.
- Material handling and conveyor equipment.
- Manufacturing and process machinery.
- Water and wastewater treatment plants.
- Heavy industrial automation systems.
Frequently Asked Questions
What is the ABB 3AXD50000035921 used for?
This product is an ACS880 industrial variable frequency drive used to control AC motors in demanding industrial automation and process applications.
What motor size can this drive control?
The drive supports motors up to approximately 45 kW with a rated output current of 87 A.
What voltage supply does this drive require?
The ACS880-01-087A-4 operates from a 380-480 V three-phase AC power supply.
What is Direct Torque Control?
Direct Torque Control (DTC) is ABB’s advanced motor control technology that provides extremely fast torque response and high precision motor performance.
Where are ACS880 drives typically installed?
They are widely used in industrial environments such as manufacturing plants, water treatment facilities, mining operations and heavy machinery installations.
Trusted by Industrial Automation Engineers
ABB ACS880 industrial drives are trusted worldwide by automation engineers to deliver precise motor control, high reliability and efficient operation in demanding industrial environments.
| Manufacturer Part Number | ACS880-01-069A-3+N7502 |
|---|---|
| Packed Quantity | 1 |
| Height | 732mm |
| Width | 203mm |
| Depth | 274mm |
| Amperage | 69A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe |
| Number of digital inputs | 6 |
| Number of digital outputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP21 |
| KW Rating | 30kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces other | 4 |
| Output Frequency | 500Hz |
| Output Voltage | 415VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/415VAC |
| VSD Range | ABB ACS880 |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AXD50000035921 |
