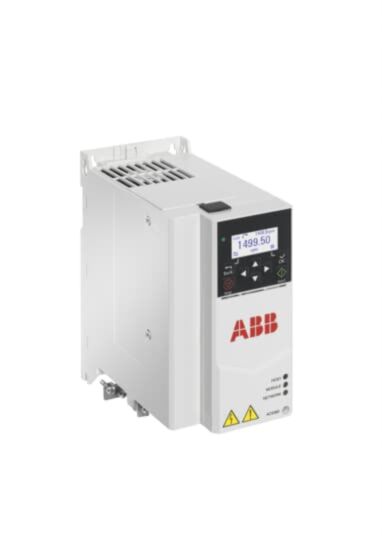

ACS380-042S-09A8-1 ABB 2.2kW Three Phase ABB ACS380 Variable Speed Drive

Why Choose the ABB ACS380-042S-09A8-1 Machinery Drive?

The ABB ACS380-042S-09A8-1 is a compact industrial variable frequency drive (VFD) designed to provide accurate speed and torque control for AC motors used in machinery and automation systems. Part of ABB’s modern ACS380 machinery drive platform, this drive offers reliable performance, simplified commissioning and seamless integration into machine control systems.

The ACS380 series is specifically developed for machine builders and industrial automation engineers who require a flexible, high-performance drive solution. Built-in connectivity, adaptable programming and an intuitive control interface allow rapid installation and efficient configuration in machine panels and industrial equipment.

With a 2.2 kW motor power rating and 9.8 A output current, the ACS380-042S-09A8-1 is well suited for conveyors, mixers, cranes, extruders and other machine applications requiring stable motor speed control and dependable performance.

Key Advantages

• Compact ACS380 machinery drive platform designed for machine builders.
• 2.2 kW rated motor power suitable for small industrial machines.
• Flexible control supporting induction and synchronous motors.
• Integrated safety features including Safe Torque Off (STO).
• Built-in communication and adaptable programming capabilities.
• Reliable ABB engineering with long service life.

Key Features

• ACS380 AC frequency converter.
• Rated motor power: 2.2 kW.
• Output current: 9.8 A.
• Input voltage: 1-phase 200 – 240 V AC.
• Vector and V/Hz motor control modes.
• Integrated EMC filter and brake chopper.
• Modbus RTU communication via RS-485.
• Flexible digital and analogue I/O configuration.

Technical Specifications

• Manufacturer: ABB
• Series: ACS380 Machinery Drives
• Model: ACS380-042S-09A8-1
• Product ID: 3AXD50000031884
• Drive type: AC frequency converter
• Motor power rating: 2.2 kW
• Output current: 9.8 A
• Input voltage: 200 – 240 V AC
• Number of phases: Single-phase input
• Output frequency: 0 – 599 Hz
• Protection class: IP20
• Frame size: R2
• Mounting: Cabinet installation module
• Operating temperature: up to 50 °C ambient

Compact Motor Control for Machine Builders

Variable frequency drives are widely used in industrial automation to regulate motor speed and torque according to machine requirements. The ABB ACS380 series is specifically designed for machine building applications, delivering dependable motor control and improved productivity in a compact design.

Its integrated software features, communication capabilities and adaptive programming allow engineers to customise drive functionality for specific machine processes while maintaining reliable and efficient motor operation.

Typical Applications

• Conveyor and material handling systems.
• Mixers and extruders.
• Industrial cranes and hoists.
• Textile and packaging machinery.
• Food and beverage processing equipment.

Trusted by Machine Builders and Automation Engineers

ABB ACS380 machinery drives are widely used by machine builders worldwide for compact design, reliable performance and seamless integration into automation systems.
