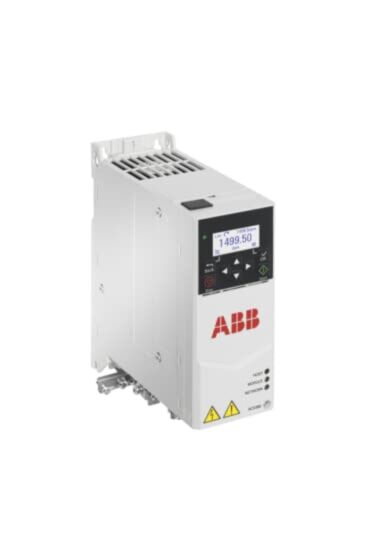

ACS380-042C-04A8-1 ABB 0.75kW Three Phase ABB ACS380 Variable Speed Drive
MPN: ACS380-042C-04A8-1
Alt. SKU: 3AXD50000031846
Why Choose the ACS380-042C-04A8-1 [3AXD50000031846]
The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It’s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery. With the integrated functional safety features, the ACS380 drive can be also part of the machine’s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive’s software can be easily customized with adaptive programming to match any specific application requirements.
Technical Specification
- Function: Machinery drive with integrated functional safety via PROFIsafe over PROFINET.
- Input Voltage: 200 to 240 V (single-phase).
- Output Current (Normal Use): 4.8 A.
- Output Power (Normal Use): 0.75 kW.
- Protection Rating: IP20, Open Type enclosure (NEMA).
- Operating Humidity: 5 to 95% RH.
- Mounting Type: Module.
- Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, TCP/IP.
- Number of Digital Inputs/Outputs: 2 inputs, 1 output.
- Weight: 1.40 kg (3.086 lb).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the input voltage range for the ACS380 drive?
The ACS380 drive operates with an input voltage range of 200 to 240 V (single-phase).
What is the output current rating for normal use?
The output current for normal use is 4.8 A.
Can the ACS380 drive be integrated into a machine's safety system?
Yes, it features integrated functional safety via PROFIsafe over PROFINET, allowing it to be part of the machine’s safety system.
What types of applications is the ACS380 drive suitable for?
It is suitable for applications such as mixers, conveyors, EOT and tower cranes, extruders, and textile machinery.
What is the protection rating of the ACS380 drive?
The protection rating is IP20, indicating an open type enclosure (NEMA).
What communication protocols are supported by the ACS380 drive?
The drive supports CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, PROFINET IO, and TCP/IP.
What is the weight of the ACS380 drive?
The weight of the ACS380 drive is 1.40 kg (3.086 lb).
| Manufacturer Part Number | ACS380-042C-04A8-1 |
|---|---|
| Packed Quantity | 1 |
| Height | 223mm |
| Width | 70mm |
| Depth | 176mm |
| Amperage | 4.8A |
| Control Setting | CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe, TCP/IP |
| Digital Inputs | 2 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP20 |
| KW Rating | 0.75kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces other | 3 |
| Output Frequency | 599Hz |
| Output Voltage | 240VAC |
| Output Phases | Three phase |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 200/240VAC |
| VSD Range | ABB ACS380 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | 3AXD50000031846 |
