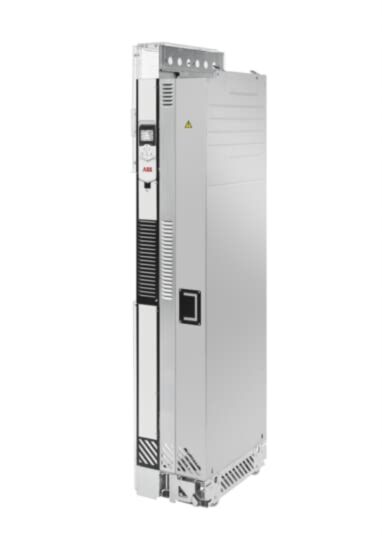

ACS880-04-522A-7 ABB 500kW Three Phase ABB ACS880 Variable Speed Drive

Why Choose the ABB ACS880-04-522A-7 Industrial Drive Module?

The ABB ACS880-04-522A-7 (Product ID 3AUA0000161804) is a high-power industrial AC variable frequency drive module designed for demanding motor control applications across heavy industry. As part of the advanced ABB ACS880 industrial drive platform, it delivers highly accurate speed and torque control for large three-phase motors used in process automation and production systems.

The ACS880 platform is engineered to meet the requirements of industries such as oil and gas, mining, metals, chemicals, cement, marine, pulp and paper, and water treatment. With built-in harmonic filtering and extensive configuration options, the drive simplifies system engineering while ensuring reliable long-term operation.

With a rated output power of 500 kW, nominal output current of 522 A and a three-phase 525–690 V AC supply, the ACS880-04-522A-7 is designed as a cabinet-integrated module for large industrial drive systems controlling conveyors, compressors, mixers, pumps and heavy process equipment.

Key Advantages

• High-power industrial drive module for heavy motor control applications.
• 500 kW rated motor power suitable for large industrial machinery.
• 522 A output current enabling control of high-capacity motors.
• Integrated harmonic filtering choke as standard.
• Advanced Direct Torque Control (DTC) motor control technology.
• Flexible communication and automation connectivity.

Key Features

• ABB ACS880 industrial drive module series.
• 500 kW rated output power.
• 522 A nominal output current.
• Three-phase 525–690 V AC input supply.
• Built-in harmonic choke for improved power quality.
• Support for industrial communication protocols.
• Expandable safety and I/O modules.
• Module design for cabinet assembly.

Technical Specifications

• Manufacturer: ABB
• Series: ACS880 Industrial Drives
• Model: ACS880-04-522A-7
• Product ID: 3AUA0000161804
• Product type: Industrial AC variable frequency drive module
• Rated output power (Pn): 500 kW
• Rated output current (In): 522 A
• Input voltage: 525–690 V AC
• Input phases: 3-phase
• Frequency: 47.5 – 63 Hz
• Protection rating: IP20
• Mounting type: Module for cabinet assembly
• Dimensions (H × W × D): approx. 1541 × 350 × 505 mm
• Weight: approx. 165 kg

High-Performance Motor Control for Industrial Processes

Industrial variable frequency drives regulate motor speed by adjusting the voltage and frequency supplied to the motor. In large industrial installations this improves process precision, reduces energy consumption and minimises mechanical stress on motors and equipment.

The ABB ACS880 drive architecture is widely used in heavy industry because of its robust design, modular architecture and advanced motor control capabilities. Its flexible connectivity allows seamless integration with PLC systems and industrial communication networks used in modern automation environments.

Typical Applications

• Industrial conveyors and material handling systems.
• Large pumps and compressors.
• Extruders and process machinery.
• Cranes and hoisting systems.
• Mining, metals and cement production.
• Water and wastewater treatment plants.

Trusted by Industrial Automation Engineers

ABB ACS880 industrial drives are trusted worldwide by engineers and system integrators to deliver reliable motor control, energy efficiency and robust performance in demanding industrial environments.
